Manufacturer Part Number: | 046288026000846+ |
---|---|
Manufacturer: | AVX Corp/Kyocera Corp |
Product Category: | FFC, FPC (Flat Flexible) Connectors |
Available Quantity: | 15010 Pieces |
Unit Price: | Quote by Email |

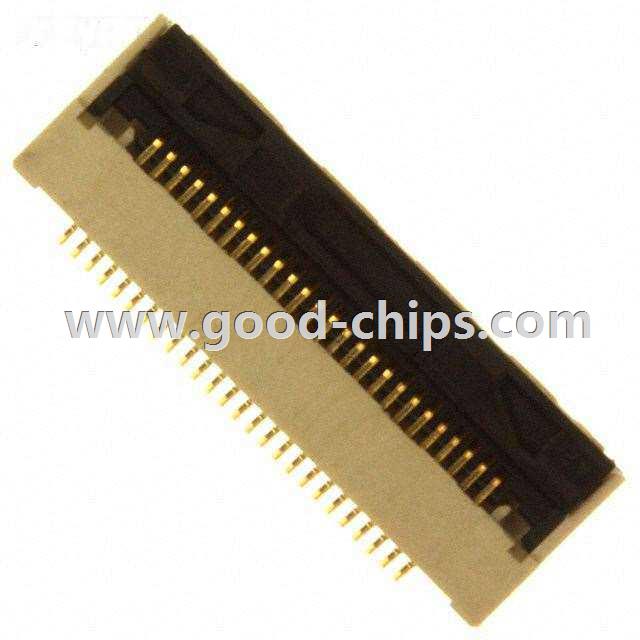

Description: | 26 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 046288026000846+ Datasheet |
Internal Part Number | 898-046288026000846+ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | 6288 Series Secure Lock ZIF Connectors | |
Featured Product | AVX - 6288 Series | |
Online Catalog | 6288, Kyocera Series | |
Category | Connectors, Interconnects | |
Family | FFC, FPC (Flat Flexible) Connectors | |
Manufacturer | AVX Corp/Kyocera Corp | |
Series | 6288, Kyocera | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Flat Flex Type | FFC, FPC | |
Mounting Type | Surface Mount, Right Angle | |
Connector/Contact Type | Contacts, Bottom | |
Number of Positions | 26 | |
Pitch | 0.020" (0.50mm) | |
Termination | Solder | |
FFC, FCB Thickness | 0.30mm | |
Height Above Board | 0.079" (2.00mm) | |
Locking Feature | Flip Lock | |
Cable End Type | Tabbed | |
Contact Material | Copper Alloy | |
Contact Finish | Gold | |
Housing Material | Plastic | |
Actuator Material | - | |
Features | Solder Retention, Zero Insertion Force (ZIF) | |
Voltage Rating | 50V | |
Operating Temperature | -40°C ~ 105°C | |
Material Flammability Rating | - | |
Current Rating | 0.4A | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 046288026000846+ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
046288026000846+ is in stock for immediate shipping now. We are the distributor of AVX Corp/Kyocera Corp all series components. The condition of 046288026000846+ is new and unused, you can buy 046288026000846+ AVX Corp/Kyocera Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 046288026000846+.
