| Manufacturer Part Number: | 0436500613 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

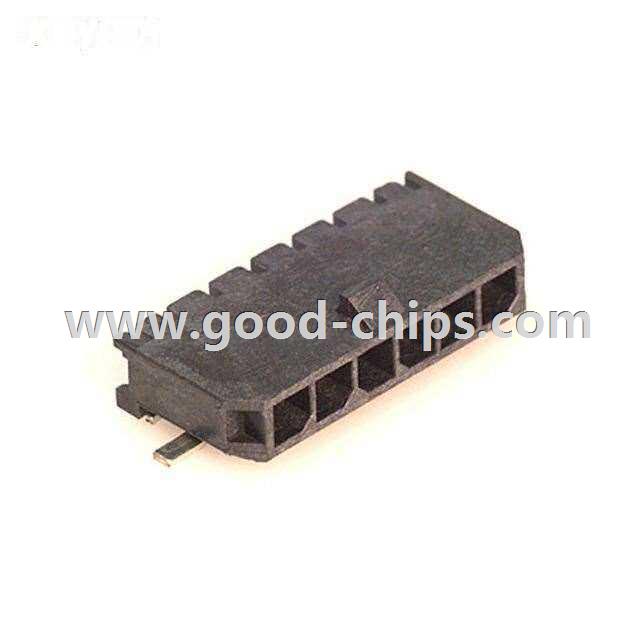

| Description: | 6 Positions Header, Shrouded Connector 0.118" (3.00mm) Surface Mount, Right Angle Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0436500613 Datasheet |
| Internal Part Number | 898-0436500613 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Glow Wire Compliance Statement | |
| Product Training Modules | Power Connectors | |
| RoHS Information | 43650-0613 Cert of Compliance | |
| Featured Product | Micro-Fit 3.0™ Interconnect System Power Connectors | |
| 3D Model | 43650-0613.stp 43650-0613 .pdf | |
| PCN Assembly/Origin | 43650, 68532, 79540 Series 22/Apr/2015 | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Molex, LLC | |
| Series | Micro-Fit 3.0™ 43650 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 6 | |
| Number of Positions Loaded | All | |
| Pitch | 0.118" (3.00mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Contact Mating Length | - | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Fastening Type | Locking Ramp | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 15µin (0.38µm) | |
| Color | Black | |
| Standard Package | 320 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0436500613 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0436500613 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0436500613 is new and unused, you can buy 0436500613 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0436500613.
