| Manufacturer Part Number: | 0436500415 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 11615 Pieces |
| Unit Price: | Quote by Email |

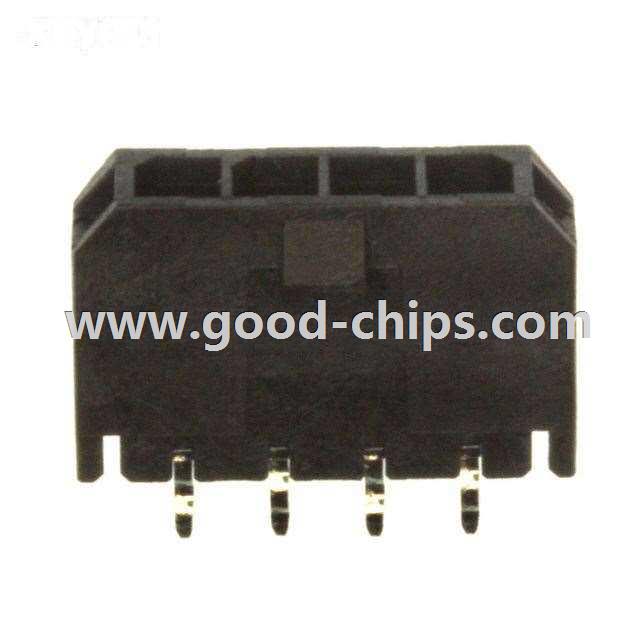

| Description: | 4 Positions Header, Shrouded Connector 0.118" (3.00mm) Through Hole Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0436500415 Datasheet |
| Internal Part Number | 898-0436500415 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Glow Wire Compliance Statement | |
| Product Training Modules | Power Connectors | |
| RoHS Information | 43650-0415 Cert of Compliance | |
| Featured Product | Micro-Fit 3.0™ Interconnect System Power Connectors | |
| 3D Model | 43650-0415.stp 0436500415 .pdf | |
| PCN Design/Specification | Multiple Devices 13/Apr/2015 | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Molex, LLC | |
| Series | Micro-Fit 3.0™ 43650 | |
| Packaging | Tray | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 4 | |
| Number of Positions Loaded | All | |
| Pitch | 0.118" (3.00mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Contact Mating Length | - | |
| Mounting Type | Through Hole | |
| Termination | Kinked Pin, Solder | |
| Fastening Type | Locking Ramp | |
| Features | Board Guide | |
| Contact Finish | Tin | |
| Contact Finish Thickness | 100µin (2.54µm) | |
| Color | Black | |
| Standard Package | 2,040 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0436500415 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0436500415 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0436500415 is new and unused, you can buy 0436500415 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0436500415.
