| Manufacturer Part Number: | 0436400301 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Housings |
| Available Quantity: | 29816 Pieces |
| Unit Price: | Quote by Email |

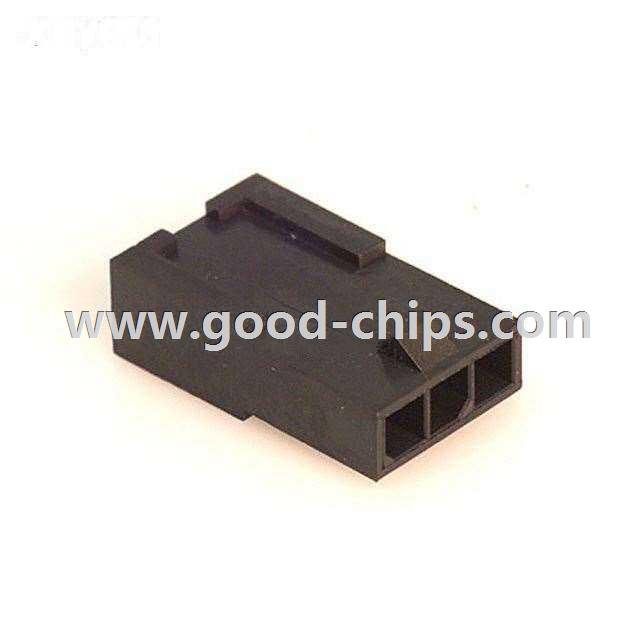

| Description: | 3 Position Rectangular Housing Connector Plug Black 0.118" (3.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0436400301 Datasheet |
| Internal Part Number | 898-0436400301 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Connectors | |
| RoHS Information | 436400301 Cert of Compliance | |
| Featured Product | Power Connectors | |
| 3D Model | 43640-0301.stp 0436400301 .pdf | |
| PCN Design/Specification | Micro-Fit Resin 20/Aug/2010 Micro-Fit Test Summary 12/Aug/2010 43640 Series Resin 05/Sep/2014 | |
| PCN Assembly/Origin | Multiple Devices Additional Supplier 04/Apr/2016 | |
| PCN Other | 43640 Series Tooling 20/Jun/2014 | |
| Online Catalog | Micro-Fit 3.0™ and Micro-Fit 3.0 BMI™ | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Housings | |
| Manufacturer | Molex, LLC | |
| Series | Micro-Fit 3.0™ 43640 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Plug | |
| Contact Type | Male Pin | |
| Number of Positions | 3 | |
| Pitch | 0.118" (3.00mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Contact Termination | Crimp | |
| Fastening Type | Locking Ramp | |
| Color | Black | |
| Features | - | |
| Note | Contacts Not Provided | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0436400301 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0436400301 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0436400301 is new and unused, you can buy 0436400301 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0436400301.
