| Manufacturer Part Number: | 0428195212 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9036 Pieces |
| Unit Price: | Quote by Email |

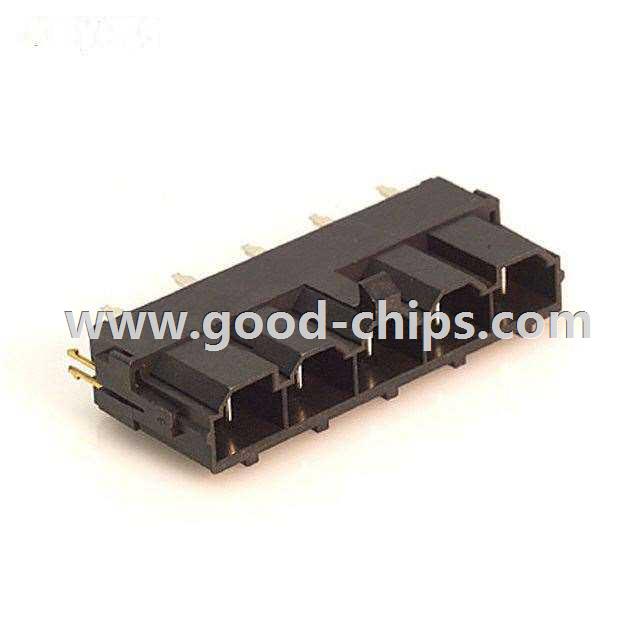

| Description: | 5 Positions Header, Shrouded Connector 0.394" (10.00mm) Through Hole Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0428195212 Datasheet |
| Internal Part Number | 898-0428195212 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Connectors | |
| Video File | Mini-Fit Sr | |
| RoHS Information | 428195212 Cert of Compliance | |
| 3D Model | 42819-5212.stp | |
| Online Catalog | Mini-Fit Sr™ Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Molex, LLC | |
| Series | Mini-Fit® Sr™ 42819 | |
| Packaging | Tray | |
| Part Status | Active | |
| Contact Type | Male Blade | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 5 | |
| Number of Positions Loaded | All | |
| Pitch | 0.394" (10.00mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Contact Mating Length | - | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Fastening Type | Locking Ramp | |
| Features | Board Lock | |
| Contact Finish | Tin | |
| Contact Finish Thickness | 100µin (2.54µm) | |
| Color | Black | |
| Standard Package | 216 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0428195212 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0428195212 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0428195212 is new and unused, you can buy 0428195212 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0428195212.
