| Manufacturer Part Number: | 0428160312 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Housings |
| Available Quantity: | 11122 Pieces |
| Unit Price: | Quote by Email |

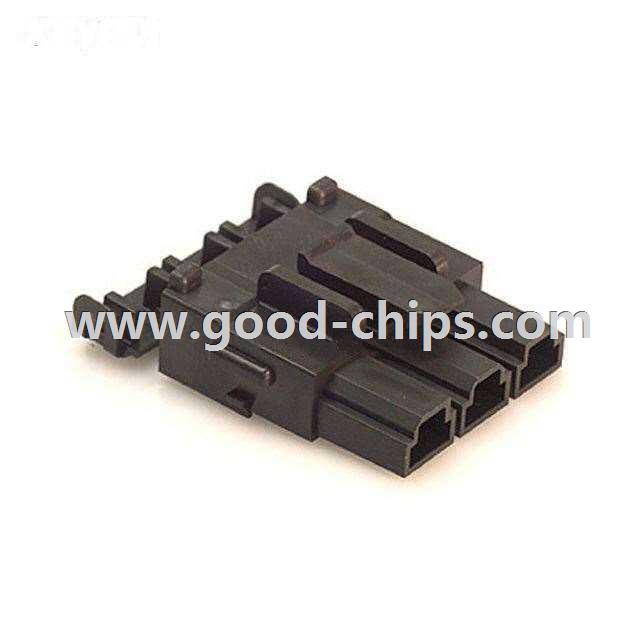

| Description: | 3 Position Rectangular Housing Connector Receptacle Black 0.394" (10.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0428160312 Datasheet |
| Internal Part Number | 898-0428160312 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Connectors | |
| Video File | Mini-Fit Sr | |
| RoHS Information | 42816-0312 Cert of Compliance | |
| 3D Model | 42816-0312.stp 0428160312 .pdf | |
| PCN Other | Various Series Supplier Change 23/Jul/2014 | |
| Online Catalog | Mini-Fit Sr™ | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Housings | |
| Manufacturer | Molex, LLC | |
| Series | Mini-Fit® Sr™ 42816 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle | |
| Contact Type | Female Socket | |
| Number of Positions | 3 | |
| Pitch | 0.394" (10.00mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Contact Termination | Crimp | |
| Fastening Type | Latch Lock | |
| Color | Black | |
| Features | - | |
| Note | Contacts Not Provided | |
| Standard Package | 750 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0428160312 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0428160312 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0428160312 is new and unused, you can buy 0428160312 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0428160312.
