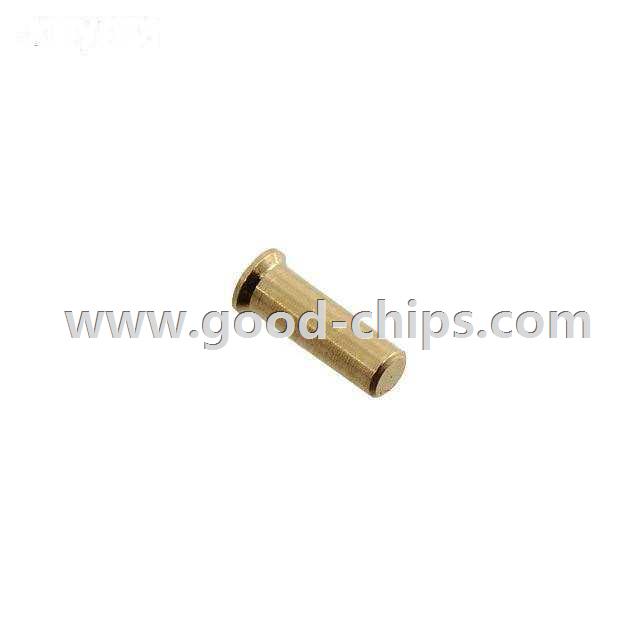

Manufacturer Part Number: | 0415-0-15-15-16-27-10-0 |
---|---|
Manufacturer: | Mill-Max Manufacturing Corp. |
Product Category: | Terminals - PC Pin Receptacles, Socket Connectors |
Available Quantity: | 19854 Pieces |
Unit Price: | Quote by Email |
Description: | Pin Receptacle Connector 0.022" ~ 0.034" (0.56mm ~ 0.86mm) No Tail Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 0415-0-15-15-16-27-10-0 Datasheet |
Internal Part Number | 898-0415-0-15-15-16-27-10-0 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Article Library | How to Specify Connectors for LED Applications | |
Online Catalog | Mill-Max Manufacturing Corp. | |
Category | Connectors, Interconnects | |
Family | Terminals - PC Pin Receptacles, Socket Connectors | |
Manufacturer | Mill-Max Manufacturing Corp. | |
Series | 0415 | |
Packaging | Bulk | |
Part Status | Active | |
Tail Type | No Tail | |
Termination | Solder | |
Length - Overall | 0.190" (4.83mm) | |
Accepts Pin Diameter | 0.022" ~ 0.034" (0.56mm ~ 0.86mm) | |
Mounting Hole Diameter | 0.063" (1.60mm) | |
Pin Hole Diameter | 0.051" (1.30mm) | |
Flange Diameter | 0.078" (1.98mm) | |
Tail Diameter | - | |
Socket Depth | 0.165" (4.19mm) | |
Contact Material | Beryllium Copper | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Features | - | |
Operating Temperature | -55°C ~ 125°C | |
Board Thickness | - | |
Insertion Force | - | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 0415-0-15-15-16-27-10-0 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
0415-0-15-15-16-27-10-0 is in stock for immediate shipping now. We are the distributor of Mill-Max Manufacturing Corp. all series components. The condition of 0415-0-15-15-16-27-10-0 is new and unused, you can buy 0415-0-15-15-16-27-10-0 Mill-Max Manufacturing Corp. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0415-0-15-15-16-27-10-0.
