Manufacturer Part Number: | 03R-WPJV-1-SMM(NN) |
---|---|
Manufacturer: | JST Sales America Inc. |
Product Category: | Rectangular Connectors - Housings |
Available Quantity: | 11844 Pieces |
Unit Price: | Quote by Email |

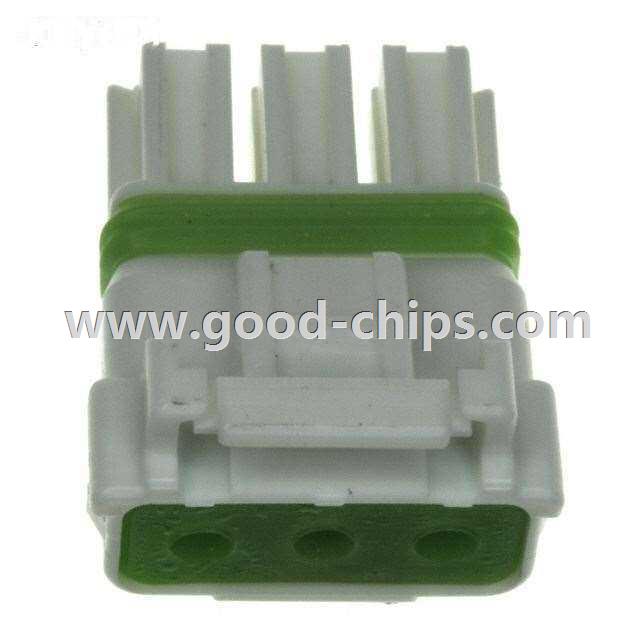

Description: | 3 Position Rectangular Housing Connector Receptacle Natural 0.197" (5.00mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 03R-WPJV-1-SMM(NN) Datasheet |
Internal Part Number | 898-03R-WPJV-1-SMM(NN) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | WPJ Connector | |
Featured Product | WPJ Series Wire-to-Wire and Wire-to-Board Crimp Style Connector | |
Online Catalog | WPJ Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Housings | |
Manufacturer | JST Sales America Inc. | |
Series | WPJ | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Receptacle | |
Contact Type | Female Socket | |
Number of Positions | 3 | |
Pitch | 0.197" (5.00mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Mounting Type | Free Hanging (In-Line) | |
Contact Termination | Crimp | |
Fastening Type | Latch Lock | |
Color | Natural | |
Features | JIS C 0920 Grade Level 7 | |
Note | Contacts Not Provided | |
Standard Package | 576 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 03R-WPJV-1-SMM(NN) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
03R-WPJV-1-SMM(NN) is in stock for immediate shipping now. We are the distributor of JST Sales America Inc. all series components. The condition of 03R-WPJV-1-SMM(NN) is new and unused, you can buy 03R-WPJV-1-SMM(NN) JST Sales America Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 03R-WPJV-1-SMM(NN).
