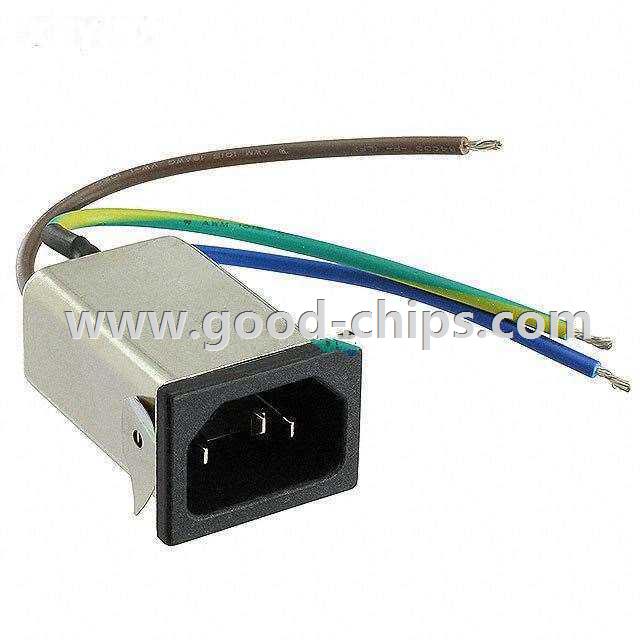

Manufacturer Part Number: | 03GENW3QM-R(H) |
---|---|
Manufacturer: | Delta Electronics |
Product Category: | Power Entry Connectors - Inlets, Outlets, Modules |
Available Quantity: | 9188 Pieces |
Unit Price: | Quote by Email |
Description: | Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 03GENW3QM-R(H) Datasheet |
Internal Part Number | 898-03GENW3QM-R(H) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | EMI Filter Products | |
Online Catalog | GE Series | |
Category | Connectors, Interconnects | |
Family | Power Entry Connectors - Inlets, Outlets, Modules | |
Manufacturer | Delta Electronics | |
Series | GE | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | IEC 320-C14 | |
Connector Type | Receptacle, Male Blades | |
Current - IEC | 3A | |
Voltage - IEC | 115/250VAC | |
Current - UL | - | |
Voltage - UL | - | |
Filter Type | Filtered (EMI, RFI) - Commercial, Medical | |
Fuse | No | |
Number of Positions | 3 | |
Mounting Type | Panel Mount, Snap-In | |
Termination | Wire Leads | |
Switch Features | - | |
Features | Bleed Resistor, Mounting Clip | |
Fuse Holder, Drawer | - | |
Panel Cutout Dimensions | Rectangular - 29.50mm x 21.50mm | |
Panel Thickness | 0.031" ~ 0.063" (0.79mm ~ 1.60mm) | |
Material Flammability Rating | - | |
Ingress Protection | - | |
Approvals | CSA, UL, VDE | |
Standard Package | 180 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 03GENW3QM-R(H) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
03GENW3QM-R(H) is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of 03GENW3QM-R(H) is new and unused, you can buy 03GENW3QM-R(H) Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 03GENW3QM-R(H).
