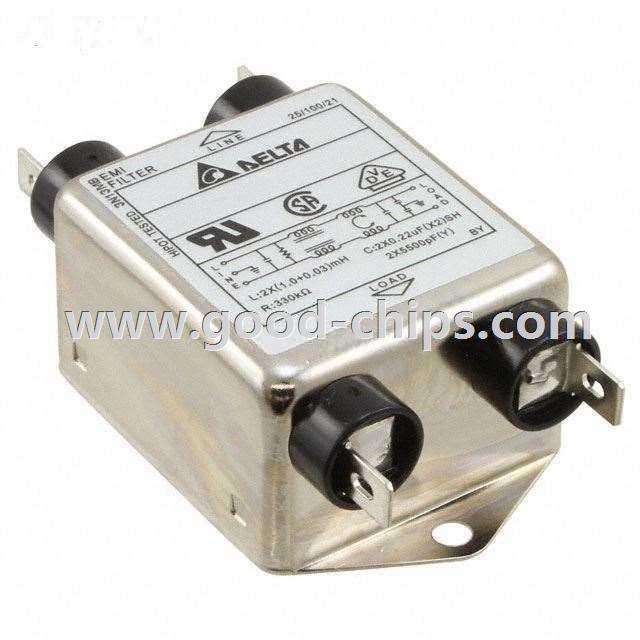

| Manufacturer Part Number: | 03DSCG5 |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | Power Line Filter Modules |
| Available Quantity: | 9100 Pieces |
| Unit Price: | Quote by Email |
| Description: | MP PL FILTER 3A 115/250VAC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 03DSCG5 Datasheet |
| Internal Part Number | 898-03DSCG5 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | EMI Filter Products | |
| Online Catalog | DS Series | |
| Category | Filters | |
| Family | Power Line Filter Modules | |
| Manufacturer | Delta Electronics | |
| Series | DS | |
| Part Status | Active | |
| Filter Type | Single Phase | |
| Configuration | Two Stage | |
| Voltage - Rated DC | - | |
| Voltage - Rated AC | 115V, 250V | |
| Voltage - Rated AC (Phase to Ground/Neutral) | - | |
| Voltage - Rated AC (Phase to Phase) | - | |
| Current | 3A | |
| Frequency - Operating | 50/60Hz | |
| Applications | General Purpose | |
| Approvals | CSA, UR, VDE | |
| Operating Temperature | - | |
| Mounting Type | Chassis Mount | |
| Termination Style | Quick Connect | |
| Inductance | L1 - 30mH, L2 - 1mH | |
| Standard Package | 84 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 03DSCG5 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
03DSCG5 is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of 03DSCG5 is new and unused, you can buy 03DSCG5 Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 03DSCG5.
