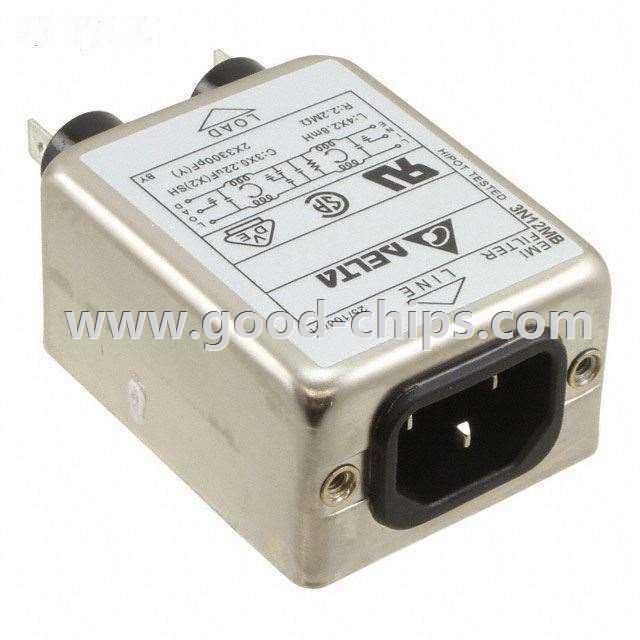

03DRDG3S

03DRDG3S
Manufacturer Part Number:03DRDG3S
Manufacturer:
Product Category:Power Line Filter Modules
Available Quantity:9062 Pieces
Unit Price:Quote by Email
Description:HI-PERF FILTER 3A 115/250VAC
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 03DRDG3S Datasheet
03DRDG3S´s Parameters
Internal Part Number898-03DRDG3S
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesEMI Filter Products
Online Catalog DR Series
CategoryFilters
FamilyPower Line Filter Modules
ManufacturerDelta Electronics
SeriesDR
Part StatusActive
Filter TypeSingle Phase
ConfigurationTwo Stage
Voltage - Rated DC-
Voltage - Rated AC115V, 250V
Voltage - Rated AC (Phase to Ground/Neutral)-
Voltage - Rated AC (Phase to Phase)-
Current3A
Frequency - Operating50/60Hz
ApplicationsGeneral Purpose
ApprovalsCSA, UR, VDE
Operating Temperature-25°C ~ 100°C
Mounting TypeChassis Mount
Termination StyleIEC 320-C14, Quick Connect
Inductance2.8mH
Standard Package 60
Weight0.001 KG
ApplicationEmail for details
Replacement Part03DRDG3S
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

03DRDG3S is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of 03DRDG3S is new and unused, you can buy 03DRDG3S Delta Electronics with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 03DRDG3S.
