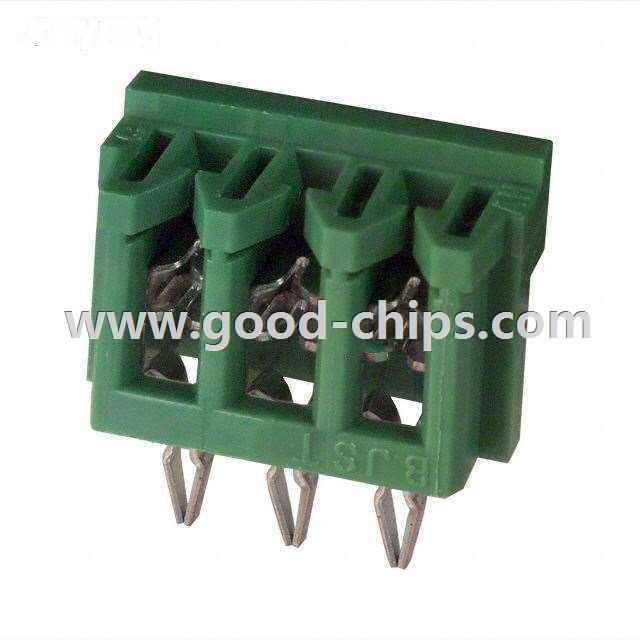

| Manufacturer Part Number: | 03DB-8M(LF) |
|---|---|
| Manufacturer: | JST Sales America Inc. |
| Product Category: | Rectangular Connectors - Board In, Direct Wire to Board |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 3 Position Individual Wires Connector Green IDC 24-28 AWG, Stranded Through Hole, Press-Fit |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 03DB-8M(LF) Datasheet |
| Internal Part Number | 898-03DB-8M(LF) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Board In, Direct Wire to Board | |
| Manufacturer | JST Sales America Inc. | |
| Series | DB | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Individual Wires | |
| Number of Positions | 3 | |
| Cable Pitch | 0.098" (2.50mm) | |
| Board-Side Pitch | 0.098" (2.50mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Mounting Type | Through Hole, Press-Fit | |
| Cable Termination | IDC | |
| Wire Gauge | 24-28 AWG, Stranded | |
| Features | Closed End | |
| Contact Finish | Tin-Lead | |
| Contact Finish Thickness | - | |
| Color | Green | |
| Number of Positions Loaded | All | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 03DB-8M(LF) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
03DB-8M(LF) is in stock for immediate shipping now. We are the distributor of JST Sales America Inc. all series components. The condition of 03DB-8M(LF) is new and unused, you can buy 03DB-8M(LF) JST Sales America Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 03DB-8M(LF).
