Manufacturer Part Number: | 0395021013 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Terminal Blocks - Headers, Plugs and Sockets |
Available Quantity: | 9210 Pieces |
Unit Price: | Quote by Email |

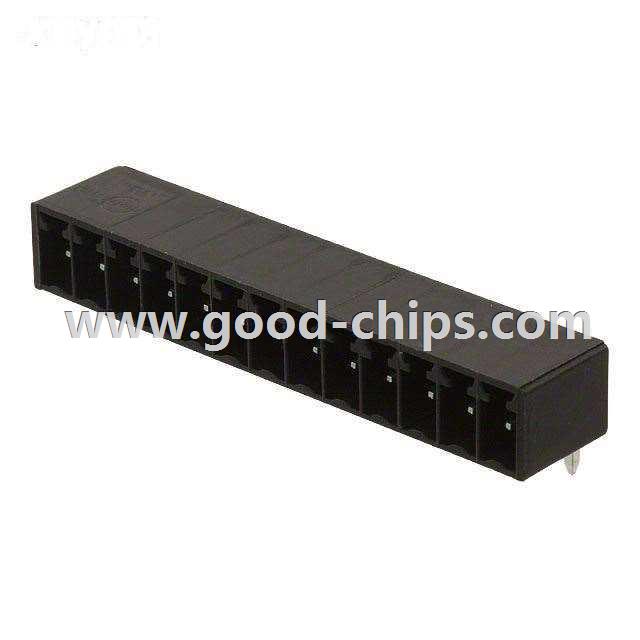

Description: | 13 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 0395021013 Datasheet |
Internal Part Number | 898-0395021013 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | 39502-1013 Cert of Compliance | |
3D Model | 39502-1013.stp | |
Online Catalog | Eurostyle™ ESE Series | |
Category | Connectors, Interconnects | |
Family | Terminal Blocks - Headers, Plugs and Sockets | |
Manufacturer | Molex, LLC | |
Series | Eurostyle™ ESE 39502 | |
Packaging | Bulk | |
Part Status | Active | |
Type | Header, Male Pins, Shrouded (4 Side) | |
Number of Positions | 13 | |
Positions Per Level | 13 | |
Number of Levels | 1 | |
Pitch | 0.138" (3.50mm) | |
Header Orientation | 90°, Right Angle | |
Plug Wire Entry | - | |
Termination Style | Solder | |
Mounting Type | Through Hole | |
Current - IEC | - | |
Voltage - IEC | - | |
Current - UL | 8A | |
Voltage - UL | 300V | |
Wire Gauge or Range - AWG | - | |
Wire Gauge or Range - mm² | - | |
Color | Black | |
Operating Temperature | -40°C ~ 105°C | |
Contact Mating Finish | Tin | |
Features | - | |
Standard Package | 240 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 0395021013 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
0395021013 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0395021013 is new and unused, you can buy 0395021013 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0395021013.
