| Manufacturer Part Number: | 0391001504 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Terminal Blocks - Barrier Blocks |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

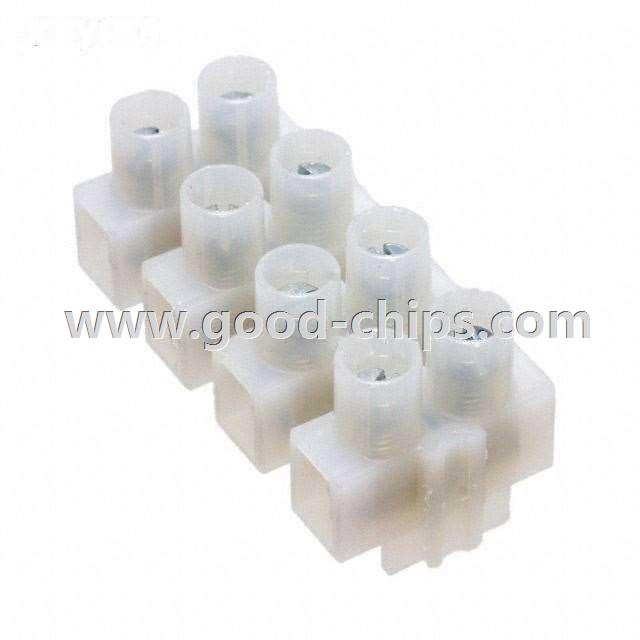

| Description: | 4 Circuit 0.591" (15.00mm) Eurostyle Terminal Strip Connector, Screws |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0391001504 Datasheet |
| Internal Part Number | 898-0391001504 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 39100-1504 Cert of Compliance | |
| 3D Model | 39100-1504.stp | |
| PCN Obsolescence/ EOL | 39100 Series 06/Aug/2014 | |
| Category | Connectors, Interconnects | |
| Family | Terminal Blocks - Barrier Blocks | |
| Manufacturer | Molex, LLC | |
| Series | Eurostyle™ 39100 | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Terminal Block Type | Eurostyle Terminal Strip | |
| Number of Circuits | 4 | |
| Number of Wire Entries | 8 | |
| Pitch | 0.591" (15.00mm) | |
| Number of Rows | 2 | |
| Current Rating | 63A | |
| Voltage Rating | 600V | |
| Wire Gauge | 6-14 AWG | |
| Top Termination | Screws | |
| Bottom Termination | Closed | |
| Barrier Type | Enclosed | |
| Features | - | |
| Color | Clear | |
| Terminal Screw Material | Steel | |
| Terminal Screw Finish | Zinc | |
| Mounting Type | Chassis, Panel | |
| Operating Temperature | 100°C | |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 | |
| Material Flammability Rating | UL94 V-2 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0391001504 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0391001504 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0391001504 is new and unused, you can buy 0391001504 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0391001504.
