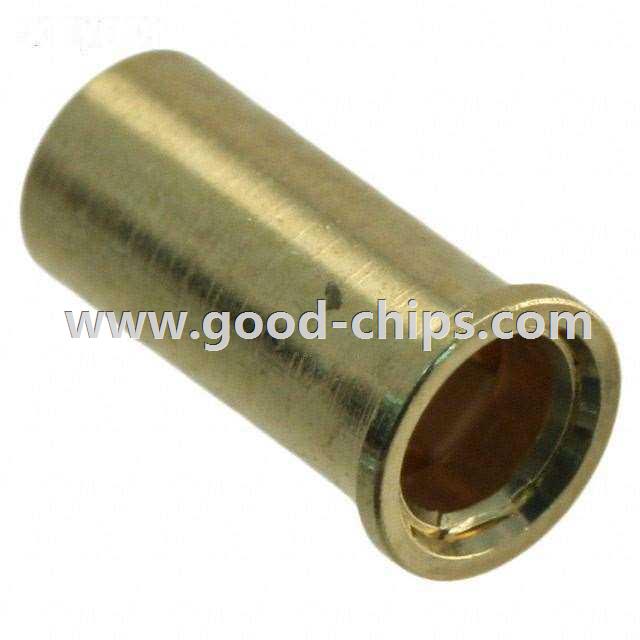

0372-0-15-15-13-27-10-0

0372-0-15-15-13-27-10-0
Manufacturer Part Number:0372-0-15-15-13-27-10-0
Manufacturer:
Product Category:Terminals - PC Pin Receptacles, Socket Connectors
Available Quantity:10960 Pieces
Unit Price:Quote by Email
Description:Pin Receptacle Connector 0.048" ~ 0.064" (1.22mm ~ 1.63mm) No Tail Solder
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 0372-0-15-15-13-27-10-0 Datasheet
0372-0-15-15-13-27-10-0´s Parameters
Internal Part Number898-0372-0-15-15-13-27-10-0
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesPin Receptacles
Article LibraryHow to Specify Connectors for LED Applications
Online Catalog Mill-Max Manufacturing Corp
CategoryConnectors, Interconnects
FamilyTerminals - PC Pin Receptacles, Socket Connectors
ManufacturerMill-Max Manufacturing Corp.
Series0372
PackagingBulk
Part StatusActive
Tail TypeNo Tail
TerminationSolder
Length - Overall0.225" (5.72mm)
Accepts Pin Diameter0.048" ~ 0.064" (1.22mm ~ 1.63mm)
Mounting Hole Diameter0.102" (2.59mm)
Pin Hole Diameter0.088" (2.24mm)
Flange Diameter0.118" (3.00mm)
Tail Diameter-
Socket Depth0.225" (5.72mm)
Contact MaterialBeryllium Copper
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Features-
Operating Temperature-55°C ~ 125°C
Board Thickness-
Insertion Force-
Standard Package 500
Weight0.001 KG
ApplicationEmail for details
Replacement Part0372-0-15-15-13-27-10-0
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

0372-0-15-15-13-27-10-0 is in stock for immediate shipping now. We are the distributor of Mill-Max Manufacturing Corp. all series components. The condition of 0372-0-15-15-13-27-10-0 is new and unused, you can buy 0372-0-15-15-13-27-10-0 Mill-Max Manufacturing Corp. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 0372-0-15-15-13-27-10-0.
