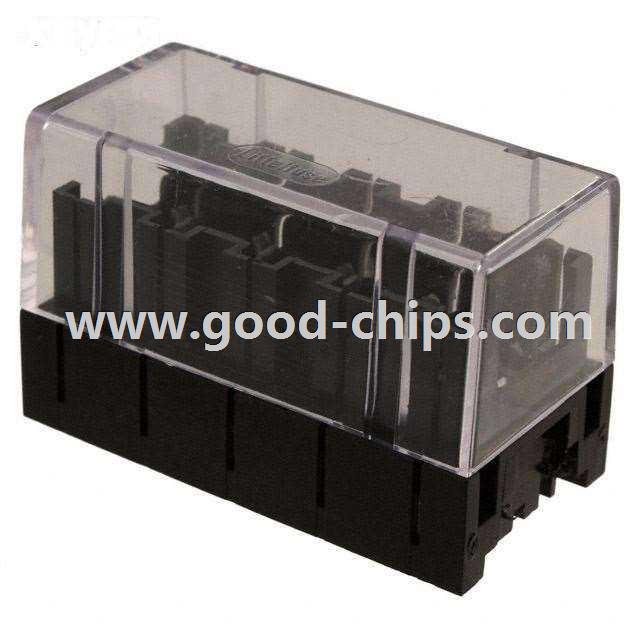

| Manufacturer Part Number: | 03500420TXN |
|---|---|
| Manufacturer: | Littelfuse Inc. |
| Product Category: | Fuseholders |
| Available Quantity: | 9020 Pieces |
| Unit Price: | Quote by Email |
| Description: | FUSE BLOCK BLADE 15A CHASSIS MNT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 03500420TXN Datasheet |
| Internal Part Number | 898-03500420TXN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 350 Series | |
| Category | Circuit Protection | |
| Family | Fuseholders | |
| Manufacturer | Littelfuse Inc. | |
| Series | 350 | |
| Part Status | Active | |
| Fuseholder Type | Block | |
| Fuse Type | Blade | |
| For Use With/Related Products | ATC, ATO | |
| Fuse Size | 0.75" L x 0.2" W x 0.74" H (19.1mm x 5.1mm x 18.8mm) | |
| Number of Circuits | 5 | |
| Voltage | - | |
| Current Rating | 15A | |
| Mounting Type | Chassis Mount | |
| Orientation | - | |
| Termination Style | Quick Connect - 0.250" (6.3mm) | |
| Contact Material | - | |
| Contact Finish | - | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 03500420TXN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
03500420TXN is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of 03500420TXN is new and unused, you can buy 03500420TXN Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 03500420TXN.
