| Manufacturer Part Number: | 0334721601 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Housings |
| Available Quantity: | 9416 Pieces |
| Unit Price: | Quote by Email |

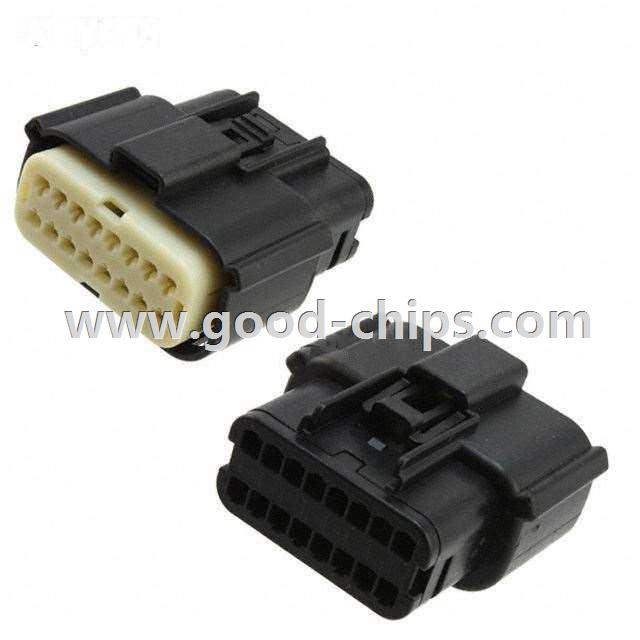

| Description: | 16 Position Rectangular Housing Connector Receptacle Black 0.138" (3.50mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0334721601 Datasheet |
| Internal Part Number | 898-0334721601 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 33472-1601 Cert of Compliance | |
| 3D Model | 33472-1601.stp 0334721601 .pdf | |
| PCN Assembly/Origin | Automated Assembly Update 19/Jan/2015 33472 Series 31/Jul/2015 | |
| Online Catalog | MX150™ Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Housings | |
| Manufacturer | Molex, LLC | |
| Series | MX150™ 33472 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle | |
| Contact Type | Female Socket | |
| Number of Positions | 16 | |
| Pitch | 0.138" (3.50mm) | |
| Number of Rows | 2 | |
| Row Spacing | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Contact Termination | Crimp | |
| Fastening Type | Latch Holder | |
| Color | Black | |
| Features | Sealed | |
| Note | Contacts Not Provided | |
| Standard Package | 294 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0334721601 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0334721601 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0334721601 is new and unused, you can buy 0334721601 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0334721601.
