0334720901

0334720901

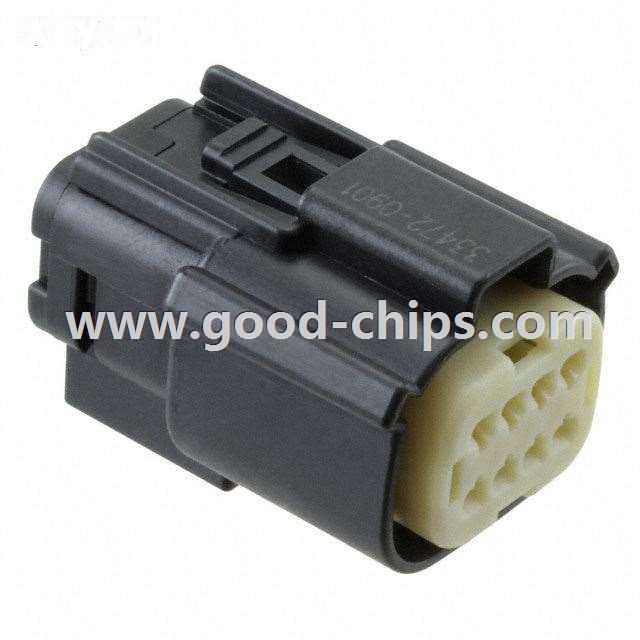

Manufacturer Part Number:0334720901
Manufacturer:
Product Category:Rectangular Connectors - Housings
Available Quantity:9437 Pieces
Unit Price:Quote by Email
Description:8 Position Rectangular Housing Connector Receptacle Black 0.138" (3.50mm)
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 0334720901 Datasheet
0334720901´s Parameters
Internal Part Number898-0334720901
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
3D Model0334720901 .pdf
PCN Assembly/OriginAutomated Assembly Update 19/Jan/2015
33471,33472 Series 28/May/2015
33472 Series 31/Jul/2015
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Housings
ManufacturerMolex, LLC
SeriesMX150™ 33472
PackagingBulk
Part StatusActive
Connector TypeReceptacle
Contact TypeFemale Socket
Number of Positions8
Pitch0.138" (3.50mm)
Number of Rows2
Row Spacing-
Mounting TypeFree Hanging (In-Line)
Contact TerminationCrimp
Fastening TypeLatch Holder
ColorBlack
Features-
NoteContacts Not Provided
Standard Package 528
Weight0.001 KG
ApplicationEmail for details
Replacement Part0334720901
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

0334720901 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0334720901 is new and unused, you can buy 0334720901 Molex, LLC with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 0334720901.
