| Manufacturer Part Number: | 0334720601 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Housings |
| Available Quantity: | 9522 Pieces |
| Unit Price: | Quote by Email |

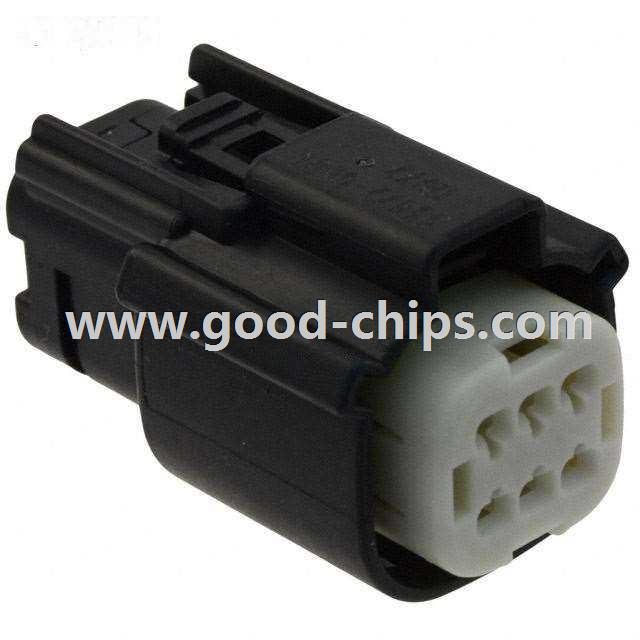

| Description: | 6 Position Rectangular Housing Connector Receptacle Black 0.138" (3.50mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0334720601 Datasheet |
| Internal Part Number | 898-0334720601 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 33472-0601 Cert of Compliance | |
| 3D Model | 33472-0601.stp 0334720601 .pdf | |
| PCN Assembly/Origin | Automated Assembly Update 19/Jan/2015 33471,33472 Series 28/May/2015 33472 Series 31/Jul/2015 334720yyy Tooling 18/May/2016 | |
| PCN Other | Various Series Tooling 27/Aug/2014 | |
| Online Catalog | MX150™ Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Housings | |
| Manufacturer | Molex, LLC | |
| Series | MX150™ 33472 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle | |
| Contact Type | Female Socket | |
| Number of Positions | 6 | |
| Pitch | 0.138" (3.50mm) | |
| Number of Rows | 2 | |
| Row Spacing | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Contact Termination | Crimp | |
| Fastening Type | Latch Holder | |
| Color | Black | |
| Features | Sealed | |
| Note | Contacts Not Provided | |
| Standard Package | 528 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0334720601 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0334720601 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0334720601 is new and unused, you can buy 0334720601 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0334720601.
