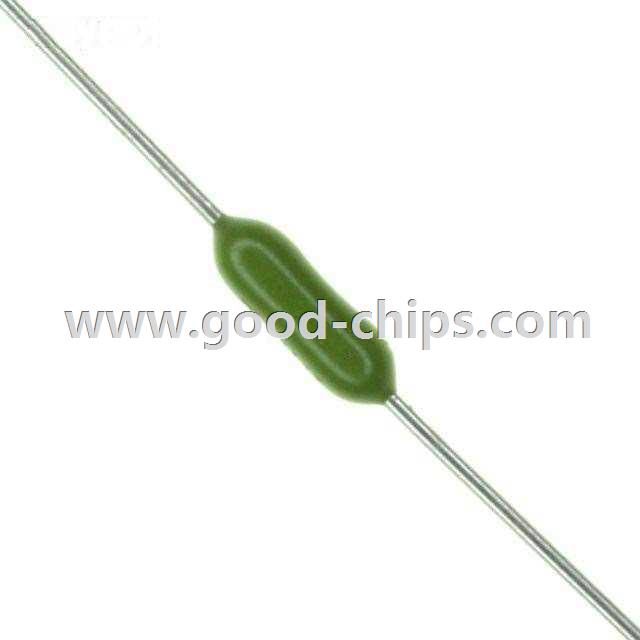

Manufacturer Part Number: | 0316002.NAT1 |
---|---|
Manufacturer: | Littelfuse Inc. |
Product Category: | Fuses |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | FUSE BRD MNT 2A 125VAC/VDC AXIAL |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 0316002.NAT1 Datasheet |
Internal Part Number | 898-0316002.NAT1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Fuseology - Introduction to Fuses | |
Category | Circuit Protection | |
Family | Fuses | |
Manufacturer | Littelfuse Inc. | |
Series | PICO® II 316 | |
Packaging | Tape & Box (TB) | |
Part Status | Obsolete | |
Fuse Type | Board Mount (Cartridge Style Excluded) | |
Current Rating | 2A | |
Voltage Rating - AC | 125V | |
Voltage Rating - DC | 125V | |
Response Time | Fast | |
Package / Case | Axial | |
Mounting Type | Through Hole | |
Breaking Capacity @ Rated Voltage | 50A | |
Melting I²t | 0.405 | |
Approvals | CCC | |
Operating Temperature | -55°C ~ 125°C | |
Color | - | |
Size / Dimension | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
DC Cold Resistance | 0.0473 Ohm | |
Standard Package | 5,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 0316002.NAT1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
0316002.NAT1 is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of 0316002.NAT1 is new and unused, you can buy 0316002.NAT1 Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0316002.NAT1.
