| Manufacturer Part Number: | 031-70507 |
|---|---|
| Manufacturer: | Amphenol-RF Division |
| Product Category: | Coaxial Connectors (RF) |
| Available Quantity: | 9307 Pieces |
| Unit Price: | Quote by Email |

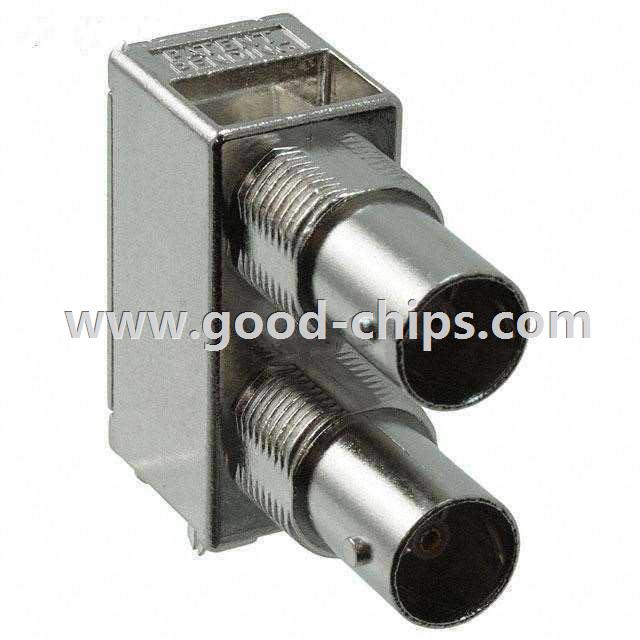

| Description: | BNC Connector Jack, Female Sockets - Dual 75 Ohm Panel Mount, Bulkhead; Through Hole, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 031-70507 Datasheet |
| Internal Part Number | 898-031-70507 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | BNC Isolated PCB Receptacles | |
| 3D Model | 031-70507.igs | |
| Online Catalog | BNC Connectors | |
| Category | Connectors, Interconnects | |
| Family | Coaxial Connectors (RF) | |
| Manufacturer | Amphenol-RF Division | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | BNC | |
| Connector Type | Jack, Female Sockets - Dual | |
| Contact Termination | Solder | |
| Shield Termination | Solder | |
| Impedance | 75 Ohm | |
| Mounting Type | Panel Mount, Bulkhead; Through Hole, Right Angle | |
| Cable Group | - | |
| Fastening Type | Bayonet Lock | |
| Frequency - Max | 1GHz | |
| Features | Board Lock | |
| Housing Color | Silver | |
| Ingress Protection | - | |
| Body Material | Zinc Die Cast | |
| Body Finish | Nickel | |
| Center Contact Material | Phosphor Bronze | |
| Center Contact Plating | Gold | |
| Dielectric Material | Polypropylene (PP) | |
| Voltage Rating | 500V | |
| Operating Temperature | -55°C ~ 85°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 031-70507 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
031-70507 is in stock for immediate shipping now. We are the distributor of Amphenol-RF Division all series components. The condition of 031-70507 is new and unused, you can buy 031-70507 Amphenol-RF Division with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 031-70507.
