| Manufacturer Part Number: | 0307005081 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 10346 Pieces |
| Unit Price: | Quote by Email |

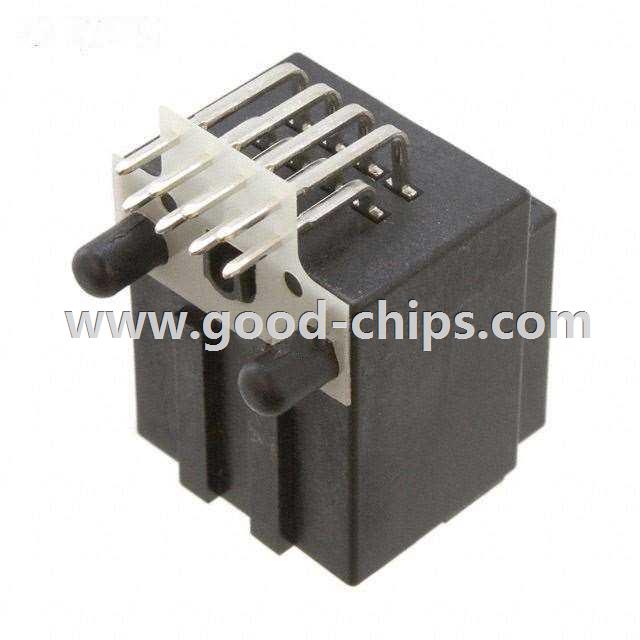

| Description: | 8 Positions Header, Shrouded Connector 0.100" (2.54mm) Through Hole, Right Angle Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0307005081 Datasheet |
| Internal Part Number | 898-0307005081 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 30700-5081 Cert of Compliance | |
| Featured Product | H-DAC 64™ Unsealed Connector System | |
| 3D Model | 30700-5081.stp | |
| PCN Assembly/Origin | 30700, 79741 Series Equip Upgrade 10/Mar/2015 30700,38741 Series 02/Jul/2015 | |
| Online Catalog | H-DAC 64™ Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Molex, LLC | |
| Series | H-DAC 64™ 30700 | |
| Packaging | Tray | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 8 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.100" (2.54mm) | |
| Contact Mating Length | - | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | Board Guide | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Color | Black | |
| Standard Package | 1,872 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0307005081 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0307005081 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0307005081 is new and unused, you can buy 0307005081 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0307005081.
