Manufacturer Part Number: | 02281305 |
---|---|
Manufacturer: | Artesyn Embedded Technologies |
Product Category: | DC DC Converters |
Available Quantity: | 9116 Pieces |
Unit Price: | Quote by Email |
Description: | DC/DC CONVERTER 12V 75W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 02281305 Datasheet |
Internal Part Number | 898-02281305 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |

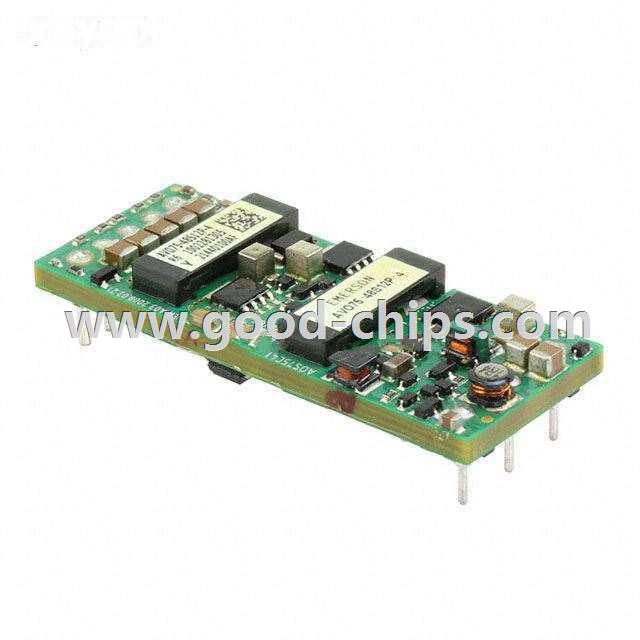

Featured Product | AVO75 Series Eighth-Brick DC/DC Converter | |
Online Catalog | AVO75 Series | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Artesyn Embedded Technologies | |
Series | AVO75 | |
Packaging | Tray | |
Part Status | Active | |
Type | Isolated Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 36V | |
Voltage - Input (Max) | 75V | |
Voltage - Output 1 | 12V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 6.3A | |
Power (Watts) - Manufacture Series | 75W | |
Voltage - Isolation | 2kV (2000V) | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OCP, OTP, OVP, UVLO | |
Mounting Type | Through Hole | |
Package / Case | 8-DIP Module, 1/8 Brick | |
Size / Dimension | 2.28" L x 0.90" W x 0.34" H (57.9mm x 22.9mm x 8.5mm) | |
Operating Temperature | -40°C ~ 85°C | |
Efficiency | 91% | |
Power (Watts) - Max | 75W | |
Standard Package | 112 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 02281305 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
02281305 is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of 02281305 is new and unused, you can buy 02281305 Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 02281305.
