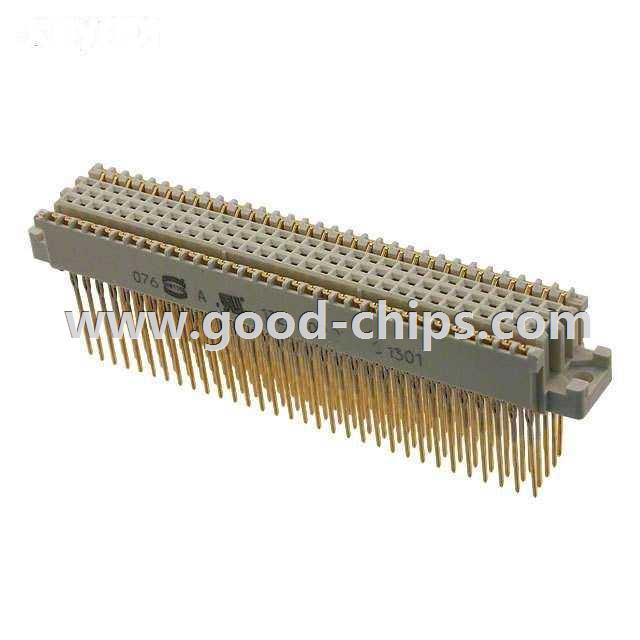

| Manufacturer Part Number: | 02021601301 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Backplane Connectors - DIN 41612 |
| Available Quantity: | 9159 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN FEMALE 160POS BACKPLANE |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 02021601301 Datasheet |
| Internal Part Number | 898-02021601301 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 64 straight female 160 pole.stp 64 straight female 160 pole.igs 64 straight female 160 pole.wrl | |
| PCN Design/Specification | 0202160yyyy Contact Rows 04/Nov/2015 | |
| Online Catalog | DIN 41612 Series | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - DIN 41612 | |
| Manufacturer | Harting | |
| Series | DIN 41612 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 160 (96 + 64 Ground) | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 5 | |
| Style | - | |
| Level, Class | 1 | |
| Mounting Type | Through Hole | |
| Termination | Press-Fit | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Current Rating | - | |
| Material Flammability Rating | UL94 V-0 | |
| Material - Insulation | - | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 02021601301 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
02021601301 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 02021601301 is new and unused, you can buy 02021601301 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 02021601301.
