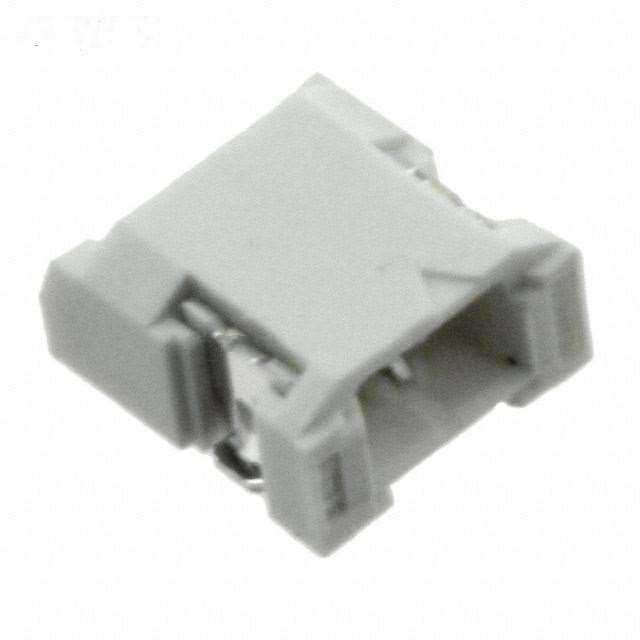

| Manufacturer Part Number: | 01R-LEBSS-TB(LF)(SN) |
|---|---|
| Manufacturer: | JST Sales America Inc. |
| Product Category: | Solid State Lighting Connectors |
| Available Quantity: | 75010 Pieces |
| Unit Price: | Quote by Email |
| Description: | SSL Connector 1 Position Receptacle Board to Board or Cable Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 01R-LEBSS-TB(LF)(SN) Datasheet |
| Internal Part Number | 898-01R-LEBSS-TB(LF)(SN) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LEB Connector Series for LED Applications | |
| Design Resources | Lighting Product Selector | |
| Online Catalog | LEB Series | |
| Category | Connectors, Interconnects | |
| Family | Solid State Lighting Connectors | |
| Manufacturer | JST Sales America Inc. | |
| Series | LEB | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Style | Board to Board or Cable | |
| Connector Type | Receptacle | |
| Number of Positions | 1 | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Pitch | - | |
| Fastening Type | - | |
| Features | Solder Retention | |
| Housing Color | White | |
| Wire Gauge | - | |
| Contact Material | Copper Alloy | |
| Contact Finish | Tin | |
| Housing Material | Polyamide (PA9T), Nylon 9T | |
| Operating Temperature | -55°C ~ 105°C | |
| Voltage Rating | 300V | |
| Current Rating | 3A | |
| Ingress Protection | - | |
| Mating Cycles | - | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 01R-LEBSS-TB(LF)(SN) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
01R-LEBSS-TB(LF)(SN) is in stock for immediate shipping now. We are the distributor of JST Sales America Inc. all series components. The condition of 01R-LEBSS-TB(LF)(SN) is new and unused, you can buy 01R-LEBSS-TB(LF)(SN) JST Sales America Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 01R-LEBSS-TB(LF)(SN).
