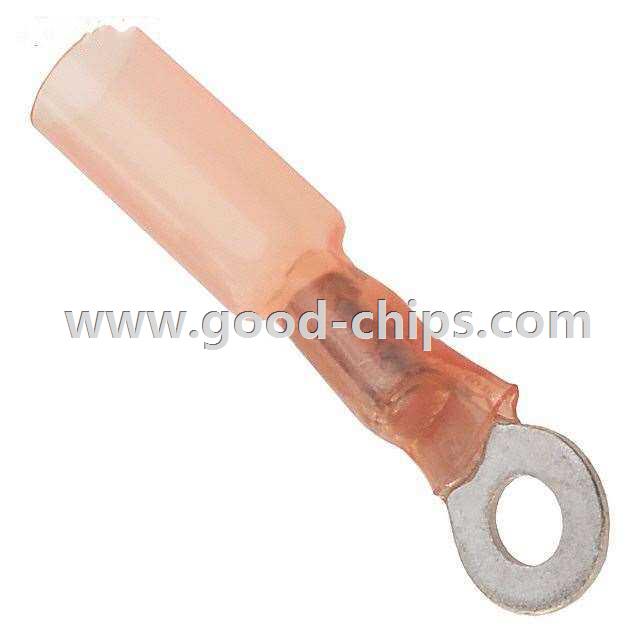

| Manufacturer Part Number: | 0191640085 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Terminals - Ring Connectors |
| Available Quantity: | 10524 Pieces |
| Unit Price: | Quote by Email |
| Description: | Ring Terminal Connector 6 Stud Circular 18-22 AWG Crimp |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0191640085 Datasheet |
| Internal Part Number | 898-0191640085 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Perma-Seal Terminals and Splices | |
| RoHS Information | 19164-0085 Cert of Compliance | |
| Featured Product | Perma-Seal™ Terminals | |
| Online Catalog | Perma-Seal™ Series | |
| Category | Connectors, Interconnects | |
| Family | Terminals - Ring Connectors | |
| Manufacturer | Molex, LLC | |
| Series | Perma-Seal™ | |
| Packaging | Bulk | |
| Part Status | Active | |
| Terminal Type | Circular | |
| Stud/Tab Size | 6 Stud | |
| Thickness | 0.028" (0.71mm) | |
| Width - Outer Edges | 0.320" (8.13mm) | |
| Length - Overall | 1.460" (37.10mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Wire Gauge | 18-22 AWG | |
| Insulation | Insulated with Heat Shrink | |
| Features | Serrated Termination | |
| Color | Red | |
| Contact Material | Copper Alloy | |
| Contact Finish | Tin | |
| Insulation Diameter | 0.235" (5.97mm) | |
| Material - Insulation | NiAc™ | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0191640085 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0191640085 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0191640085 is new and unused, you can buy 0191640085 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0191640085.
