Manufacturer Part Number: | 0191270086 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Terminals - Spade Connectors |
Available Quantity: | 10204 Pieces |
Unit Price: | Quote by Email |

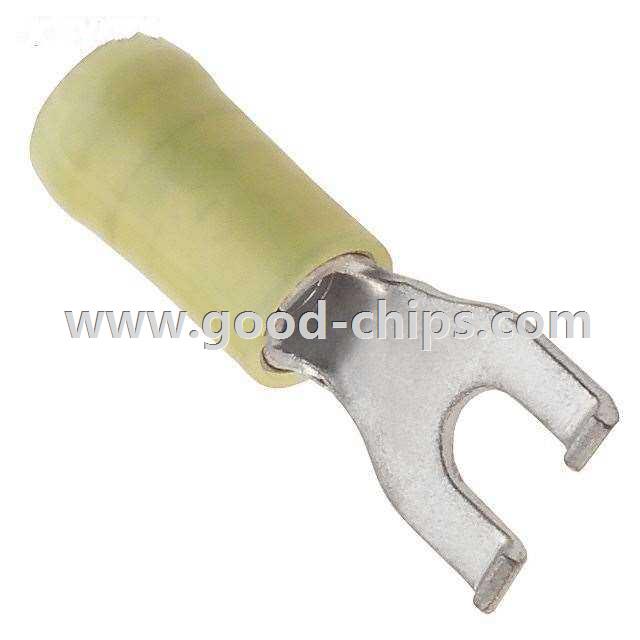

Description: | Yellow 8 Stud Spade Terminal Connector Crimp 10-12 AWG |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 0191270086 Datasheet |
Internal Part Number | 898-0191270086 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | 19127-0086-C Cert of Compliance | |
Online Catalog | Avikrimp® Series | |
Category | Connectors, Interconnects | |
Family | Terminals - Spade Connectors | |
Manufacturer | Molex, LLC | |
Series | Avikrimp™ | |
Packaging | Bulk | |
Part Status | Active | |
Terminal Type | Flanged | |
Stud/Tab Size | 8 Stud | |
Width - Outer Edges | 0.385" (9.78mm) | |
Length - Overall | 1.026" (26.06mm) | |
Mounting Type | Free Hanging (In-Line) | |
Termination | Crimp | |
Wire Gauge | 10-12 AWG | |
Insulation | Insulated | |
Features | - | |
Color | Yellow | |
Contact Finish | Electro-Tin | |
Contact Material | Copper | |
Insulation Diameter | 0.225" (5.72mm) | |
Material - Insulation | Polyamide (PA), Nylon | |
Length - Ring Center to Termination | 0.270" (6.86mm) | |
Length - Termination | 0.400" (10.16mm) | |
Tongue Inside Opening | 0.173" (4.39mm) | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 0191270086 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
0191270086 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0191270086 is new and unused, you can buy 0191270086 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0191270086.
