| Manufacturer Part Number: | 0191210009 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Terminals - Spade Connectors |
| Available Quantity: | 12860 Pieces |
| Unit Price: | Quote by Email |

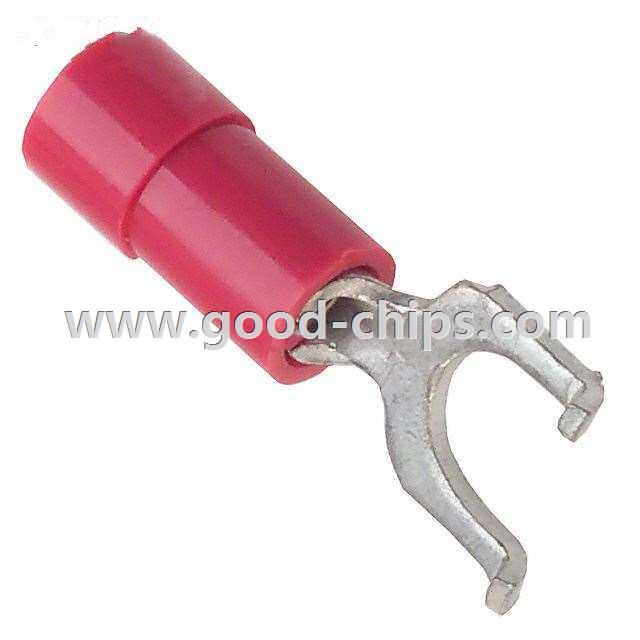

| Description: | Red 10 Stud Spade Terminal Connector Crimp 18-22 AWG |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0191210009 Datasheet |
| Internal Part Number | 898-0191210009 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 19121-0009 Cert of Compliance | |
| Featured Product | Solderless Terminals Interactive Guide | |
| Online Catalog | Insulkrimp® Series | |
| Category | Connectors, Interconnects | |
| Family | Terminals - Spade Connectors | |
| Manufacturer | Molex, LLC | |
| Series | InsulKrimp™ | |
| Packaging | Bulk | |
| Part Status | Active | |
| Terminal Type | Flanged | |
| Stud/Tab Size | 10 Stud | |
| Width - Outer Edges | 0.301" (7.65mm) | |
| Length - Overall | 0.781" (19.84mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Wire Gauge | 18-22 AWG | |
| Insulation | Insulated | |
| Features | - | |
| Color | Red | |
| Contact Finish | Electro-Tin | |
| Contact Material | Copper | |
| Insulation Diameter | 0.145" (3.68mm) | |
| Material - Insulation | Poly-Vinyl Chloride (PVC) | |
| Length - Ring Center to Termination | 0.207" (5.26mm) | |
| Length - Termination | 0.400" (10.16mm) | |
| Tongue Inside Opening | 0.198" (5.03mm) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0191210009 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0191210009 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0191210009 is new and unused, you can buy 0191210009 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0191210009.
