Manufacturer Part Number: | 0190700023 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Terminals - Ring Connectors |
Available Quantity: | 14444 Pieces |
Unit Price: | Quote by Email |

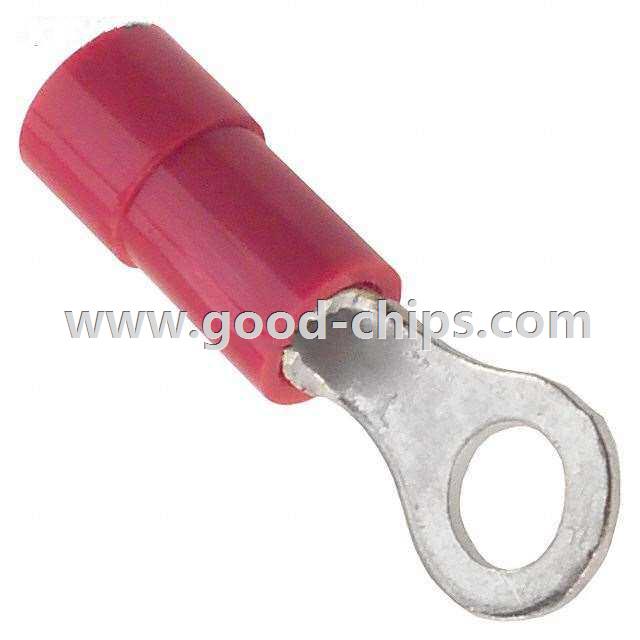

Description: | Ring Terminal Connector 1/4 Stud Circular 18-22 AWG Crimp |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 0190700023 Datasheet |
Internal Part Number | 898-0190700023 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | 19070-0023 Cert of Compliance | |
Featured Product | Solderless Terminals Interactive Guide | |
Online Catalog | InsulKrimp™ Series | |
Category | Connectors, Interconnects | |
Family | Terminals - Ring Connectors | |
Manufacturer | Molex, LLC | |
Series | InsulKrimp™ | |
Packaging | Bulk | |
Part Status | Active | |
Terminal Type | Circular | |
Stud/Tab Size | 1/4 Stud | |
Thickness | 0.028" (0.71mm) | |
Width - Outer Edges | 0.477" (12.11mm) | |
Length - Overall | 1.060" (26.92mm) | |
Mounting Type | Free Hanging (In-Line) | |
Termination | Crimp | |
Wire Gauge | 18-22 AWG | |
Insulation | Insulated | |
Features | Serrated Termination | |
Color | Red | |
Contact Material | Copper | |
Contact Finish | Tin | |
Insulation Diameter | 0.145" (3.68mm) | |
Material - Insulation | Poly-Vinyl Chloride (PVC) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 0190700023 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
0190700023 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0190700023 is new and unused, you can buy 0190700023 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0190700023.
