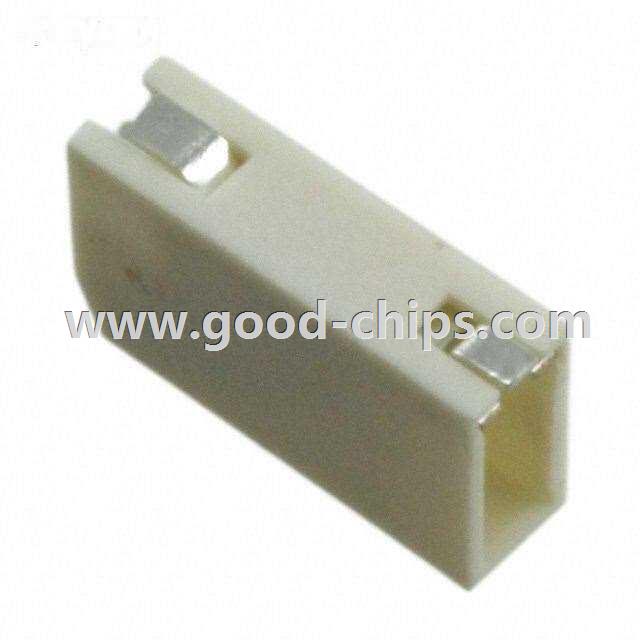

Manufacturer Part Number: | 009276001021106 |
---|---|
Manufacturer: | AVX Corporation |
Product Category: | Terminal Blocks - Wire to Board |
Available Quantity: | 27010 Pieces |
Unit Price: | Quote by Email |
Description: | 1 Position Wire to Board Terminal Block Horizontal with Board Surface Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 009276001021106 Datasheet |
Internal Part Number | 898-009276001021106 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | 9276 Series Poke-Home Connector | |
Featured Product | Discrete Wire-to-Board Connectors For Harsh Environments 9276 Series Wire-to-Board Connectors | |
Online Catalog | 9276 Series | |
Category | Connectors, Interconnects | |
Family | Terminal Blocks - Wire to Board | |
Manufacturer | AVX Corporation | |
Series | 9276 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Number of Levels | 1 | |
Positions Per Level | 1 | |
Pitch | - | |
Mating Orientation | Horizontal with Board | |
Current | 6A | |
Voltage | 250V | |
Wire Gauge | 18-24 AWG | |
Mounting Type | Surface Mount | |
Wire Termination | Screwless - Leg Spring, Push-In Spring | |
Features | - | |
Color | White | |
Operating Temperature | -40°C ~ 125°C | |
Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled | |
Contact Material - Plating | Copper Alloy - Tin Plated | |
Clamp Material - Plating | - | |
Screw Material - Plating | - | |
Torque - Screw | - | |
Screw Thread | - | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 009276001021106 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
009276001021106 is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of 009276001021106 is new and unused, you can buy 009276001021106 AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 009276001021106.
