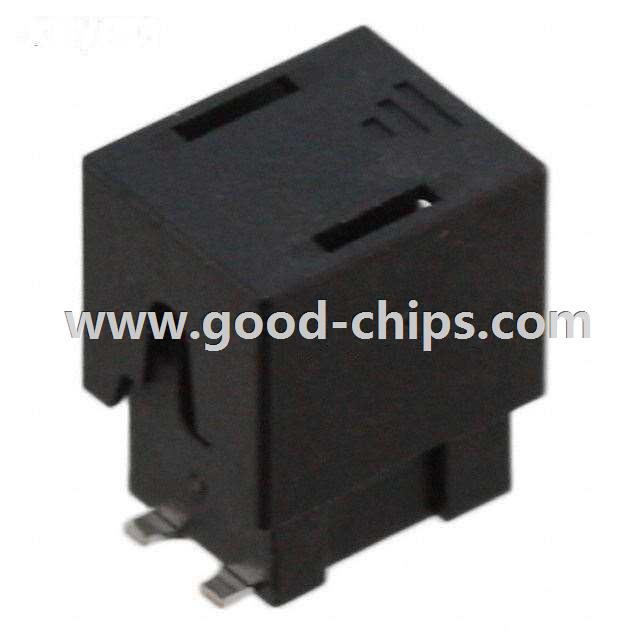

| Manufacturer Part Number: | 009178001001006 |
|---|---|
| Manufacturer: | AVX Corporation |
| Product Category: | Coaxial Connectors (RF) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Direct to Cable, IDC Connector Board-In 50 Ohm Surface Mount, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 009178001001006 Datasheet |
| Internal Part Number | 898-009178001001006 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | 9178 Series Connector Overview | |
| PCN Obsolescence/ EOL | 9178 Series EOL 30/Aug/2015 | |
| Category | Connectors, Interconnects | |
| Family | Coaxial Connectors (RF) | |
| Manufacturer | AVX Corporation | |
| Series | 9178 | |
| Packaging | Digi-Reel® | |
| Part Status | Obsolete | |
| Connector Style | Direct to Cable, IDC | |
| Connector Type | Board-In | |
| Contact Termination | Solder | |
| Shield Termination | Solder | |
| Impedance | 50 Ohm | |
| Mounting Type | Surface Mount, Right Angle | |
| Cable Group | RG-178 | |
| Fastening Type | - | |
| Frequency - Max | - | |
| Features | - | |
| Housing Color | Black | |
| Ingress Protection | - | |
| Body Material | - | |
| Body Finish | - | |
| Center Contact Material | Phosphor Bronze | |
| Center Contact Plating | Tin | |
| Dielectric Material | Polyamide (PA46), Nylon 4/6 | |
| Voltage Rating | 125V | |
| Operating Temperature | -40°C ~ 125°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 009178001001006 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
009178001001006 is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of 009178001001006 is new and unused, you can buy 009178001001006 AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 009178001001006.
