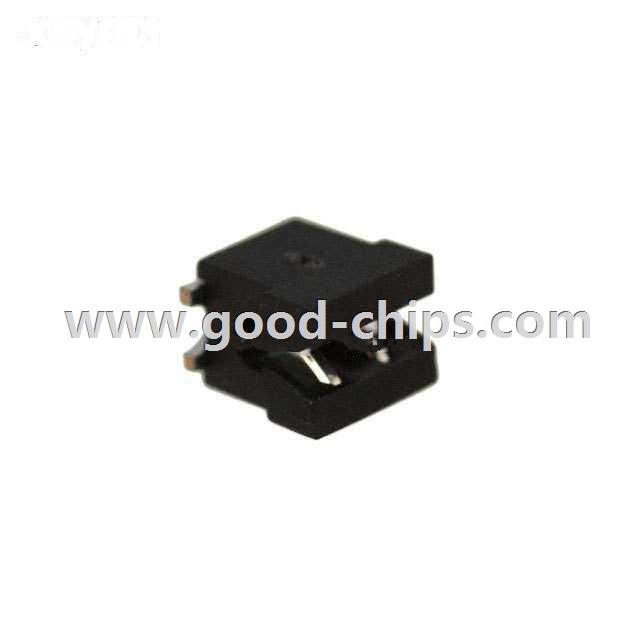

| Manufacturer Part Number: | 009176001032006 |
|---|---|
| Manufacturer: | AVX Corporation |
| Product Category: | Solid State Lighting Connectors - Contacts |
| Available Quantity: | 13010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN SSL IDC CONTACT 1POS SOLDER |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 009176001032006 Datasheet |
| Internal Part Number | 898-009176001032006 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Series 917X Standard IDC with Mass Insertion Tool Series 917X Standard IDC with Hand Insertion Tool | |
| Design Resources | Lighting Product Selector | |
| Featured Product | Discrete Wire-to-Board Connectors For Harsh Environments Series 9176 Discrete Wire IDCs | |
| Online Catalog | 9176 Series | |
| Category | Connectors, Interconnects | |
| Family | Solid State Lighting Connectors - Contacts | |
| Manufacturer | AVX Corporation | |
| Series | 9176 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Style | Board to Cable/Wire | |
| Connector Type | Contact, IDC | |
| Number of Positions | 1 | |
| Mounting Type | Surface Mount | |
| Termination | Solder | |
| Pitch | - | |
| Wire Gauge | 24 AWG | |
| Features | Cap (Cover) | |
| Contact Finish | Tin | |
| Contact Material | Phosphor Bronze | |
| Fastening Type | - | |
| Housing Color | Black | |
| Housing Material | Polyamide (PA46), Nylon 4/6 | |
| Operating Temperature | -40°C ~ 125°C | |
| Voltage Rating | 250V | |
| Current Rating | 10A per Contact | |
| Mating Cycles | 3 | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 009176001032006 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
009176001032006 is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of 009176001032006 is new and unused, you can buy 009176001032006 AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 009176001032006.
