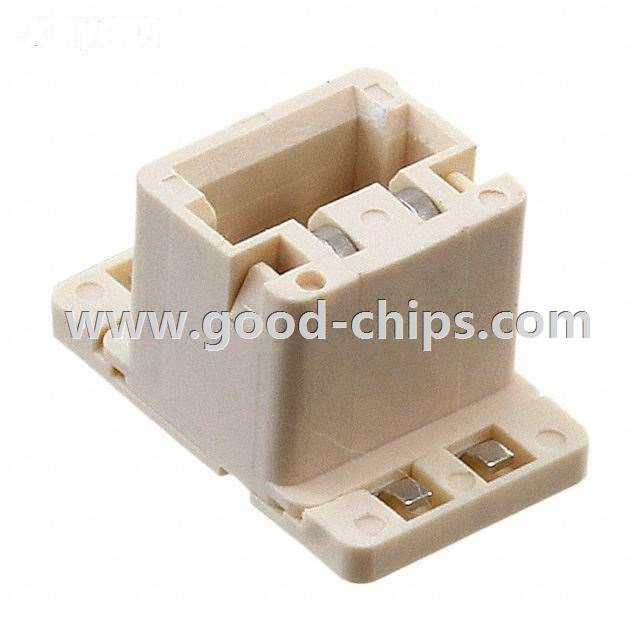

| Manufacturer Part Number: | 009159002502906 |
|---|---|
| Manufacturer: | AVX Corporation |
| Product Category: | Solid State Lighting Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | SSL Connector 2 Position Receptacle Board to Board - Card Edge 0.079" (2.00mm) Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 009159002502906 Datasheet |
| Internal Part Number | 898-009159002502906 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Category | Connectors, Interconnects | |
| Family | Solid State Lighting Connectors | |
| Manufacturer | AVX Corporation | |
| Series | 9159 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Style | Board to Board - Card Edge | |
| Connector Type | Receptacle | |
| Number of Positions | 2 | |
| Mounting Type | Surface Mount, Bottom Entry, Through Board | |
| Termination | Solder | |
| Pitch | 0.079" (2.00mm) | |
| Fastening Type | - | |
| Features | 0.80mm or 1.60mm Thick PCB, Cap Included | |
| Housing Color | White | |
| Wire Gauge | - | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Housing Material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free | |
| Operating Temperature | -40°C ~ 120°C | |
| Voltage Rating | 300V | |
| Current Rating | 2A per Contact | |
| Ingress Protection | - | |
| Mating Cycles | 10 | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 009159002502906 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
009159002502906 is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of 009159002502906 is new and unused, you can buy 009159002502906 AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 009159002502906.
