| Manufacturer Part Number: | 0039299143 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 10762 Pieces |
| Unit Price: | Quote by Email |

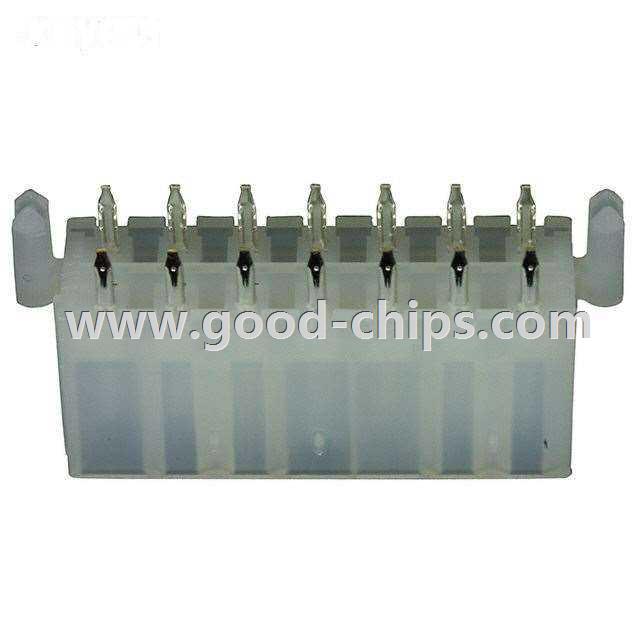

| Description: | 14 Positions Header, Shrouded Connector 0.165" (4.20mm) Through Hole Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0039299143 Datasheet |
| Internal Part Number | 898-0039299143 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Mini-Fit JR Color Variation | |
| Video File | Mini-Fit Jr | |
| RoHS Information | 39299143 Cert of Compliance | |
| Featured Product | Power Connectors | |
| 3D Model | 39-29-9143.stp 0039299143 .pdf | |
| PCN Assembly/Origin | Multiple Devices 02/Nov/2015 | |
| Online Catalog | Mini-Fit Jr™ Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Molex, LLC | |
| Series | Mini-Fit® Jr™ 5566 | |
| Packaging | Tray | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 14 | |
| Number of Positions Loaded | All | |
| Pitch | 0.165" (4.20mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.165" (4.20mm) | |
| Contact Mating Length | - | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Fastening Type | Locking Ramp | |
| Features | Board Lock | |
| Contact Finish | Tin | |
| Contact Finish Thickness | 35µin (0.90µm) | |
| Color | Natural | |
| Standard Package | 2,160 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0039299143 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0039299143 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0039299143 is new and unused, you can buy 0039299143 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0039299143.
