| Manufacturer Part Number: | 0039295123 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9073 Pieces |
| Unit Price: | Quote by Email |

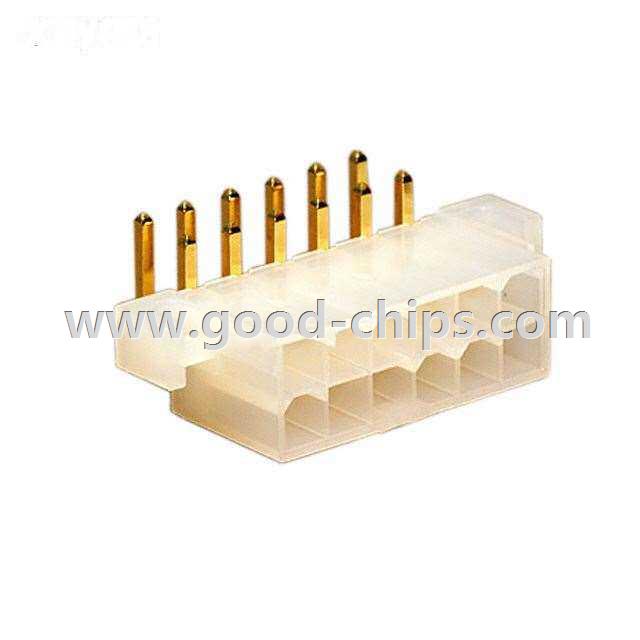

| Description: | 12 Positions Header, Shrouded Connector 0.165" (4.20mm) Through Hole, Right Angle Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0039295123 Datasheet |
| Internal Part Number | 898-0039295123 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Mini-Fit JR Color Variation | |
| Product Training Modules | Power Connectors | |
| Video File | Mini-Fit Jr | |
| RoHS Information | 39-29-5123 Cert of Compliance | |
| Featured Product | Mini-Fit Jr. Connectors Power Connectors | |
| 3D Model | 39-29-5123.stp 0039295123 .pdf | |
| PCN Design/Specification | Multiple Devices 03/Feb/2014 | |
| Online Catalog | Mini-Fit Jr™ Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Molex, LLC | |
| Series | Mini-Fit® Jr™ 5569 | |
| Packaging | Tray | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 12 | |
| Number of Positions Loaded | All | |
| Pitch | 0.165" (4.20mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.165" (4.20mm) | |
| Contact Mating Length | - | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | Locking Ramp | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Color | Natural | |
| Standard Package | 150 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0039295123 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0039295123 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0039295123 is new and unused, you can buy 0039295123 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0039295123.
