Manufacturer Part Number:0039291128
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:9518 Pieces
Unit Price:Quote by Email

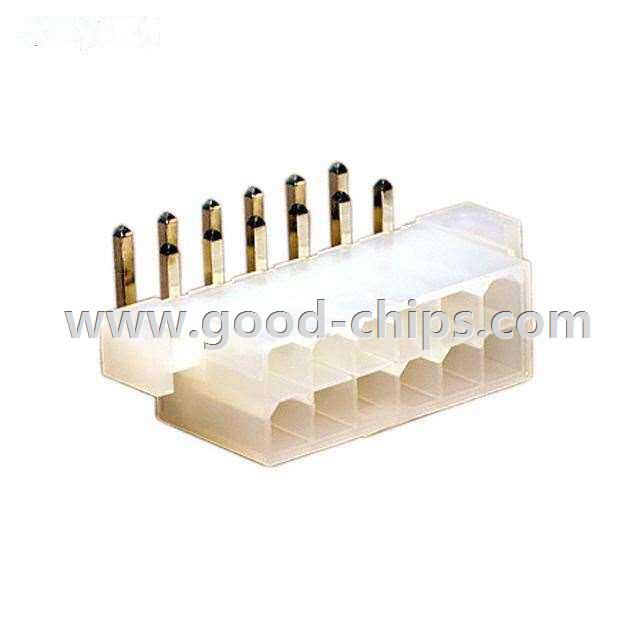

Description:12 Positions Header, Shrouded Connector 0.165" (4.20mm) Through Hole, Right Angle Tin
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 0039291128 Datasheet
0039291128´s Parameters
Internal Part Number898-0039291128
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Other Related DocumentsMini-Fit JR Color Variation
Product Training ModulesPower Connectors
Video FileMini-Fit Jr
RoHS Information39-29-1128 Cert of Compliance
Featured ProductMini-Fit Jr. Connectors
Power Connectors
3D Model39-29-1128.stp
0039291128 .pdf
PCN Design/SpecificationMultiple Devices 03/Feb/2014
PCN Assembly/Origin5569 And Right Angle Version of 87427, 05/Aug/2015
Online Catalog Mini-Fit Jr™ Series
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
ManufacturerMolex, LLC
SeriesMini-Fit® Jr™ 5569
PackagingTray
Part StatusActive
Contact TypeMale Pin
Connector TypeHeader, Shrouded
Number of Positions12
Number of Positions LoadedAll
Pitch0.165" (4.20mm)
Number of Rows2
Row Spacing0.165" (4.20mm)
Contact Mating Length-
Mounting TypeThrough Hole, Right Angle
TerminationSolder
Fastening TypeLocking Ramp
Features-
Contact FinishTin
Contact Finish Thickness200µin (5.08µm)
ColorNatural
Standard Package 150
Weight0.001 KG
ApplicationEmail for details
Replacement Part0039291128
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

0039291128 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0039291128 is new and unused, you can buy 0039291128 Molex, LLC with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 0039291128.
