Manufacturer Part Number: | 0039012061 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Rectangular Connectors - Housings |
Available Quantity: | 13671 Pieces |
Unit Price: | Quote by Email |

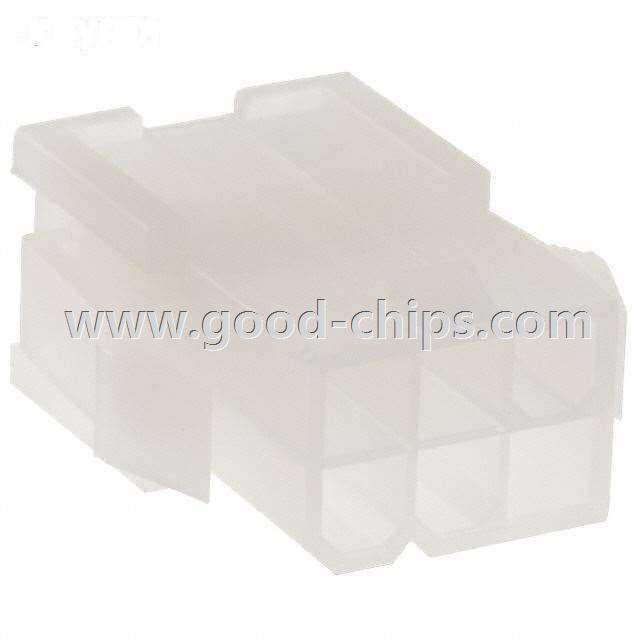

Description: | 6 Position Rectangular Housing Connector Plug Natural 0.165" (4.20mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 0039012061 Datasheet |
Internal Part Number | 898-0039012061 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | Mini-Fit JR Color Variation Moisturizing Nylon Connector Parts | |
Product Training Modules | Power Connectors | |
Video File | Mini-Fit Jr | |
RoHS Information | 39012061 Cert of Compliance | |
Featured Product | Power Connectors | |
3D Model | 39-01-2061.stp 0039012061 .pdf | |
PCN Design/Specification | V2 6/6 Nylon Resin Additional Supplier 05/Nov/2014 | |
Online Catalog | Mini-Fit® Jr™ | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Housings | |
Manufacturer | Molex, LLC | |
Series | Mini-Fit® Jr™ 5559 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Plug | |
Contact Type | Male Pin | |
Number of Positions | 6 | |
Pitch | 0.165" (4.20mm) | |
Number of Rows | 2 | |
Row Spacing | 0.165" (4.20mm) | |
Mounting Type | Panel Mount, Snap-In | |
Contact Termination | Crimp | |
Fastening Type | Locking Ramp | |
Color | Natural | |
Features | - | |
Note | Contacts Not Provided | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 0039012061 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
0039012061 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0039012061 is new and unused, you can buy 0039012061 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0039012061.
