0026482122

0026482122
Manufacturer Part Number:0026482122
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:9209 Pieces
Unit Price:Quote by Email

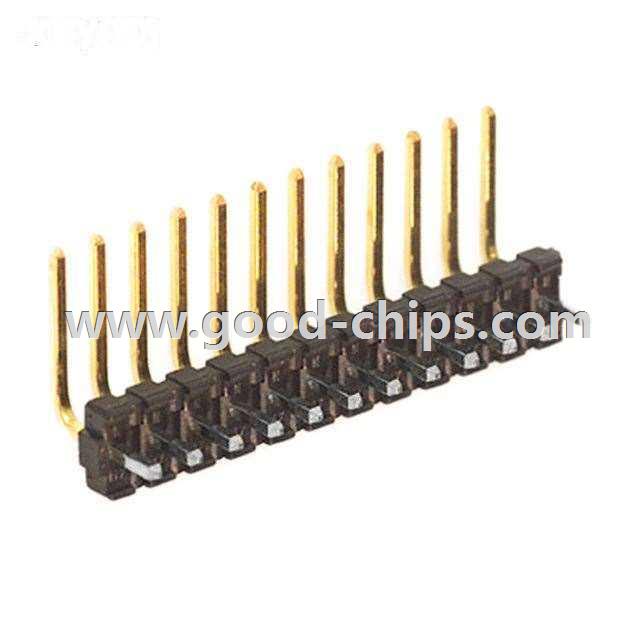

Description:12 Positions Header, Unshrouded, Breakaway Connector 0.156" (3.96mm) Through Hole, Right Angle Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 0026482122 Datasheet
0026482122´s Parameters
Internal Part Number898-0026482122
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
RoHS Information26-48-2122 Cert of Compliance
Featured ProductKK® Interconnect Solutions
Power Connectors
PCN Design/SpecificationGold Plating Removal 01/Aug/2011
Online Catalog KK® 41662 Series
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
ManufacturerMolex, LLC
SeriesKK® 41662
PackagingBulk
Part StatusActive
Contact TypeMale Pin
Connector TypeHeader, Unshrouded, Breakaway
Number of Positions12
Number of Positions LoadedAll
Pitch0.156" (3.96mm)
Number of Rows1
Row Spacing-
Contact Mating Length0.573" (14.55mm)
Mounting TypeThrough Hole, Right Angle
TerminationSolder
Fastening Type-
Features-
Contact FinishGold
Contact Finish Thickness20µin (0.51µm)
ColorBlack
Standard Package 10
Weight0.001 KG
ApplicationEmail for details
Replacement Part0026482122
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

0026482122 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0026482122 is new and unused, you can buy 0026482122 Molex, LLC with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 0026482122.
