0022287030

0022287030
Manufacturer Part Number:0022287030
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:9010 Pieces
Unit Price:Quote by Email

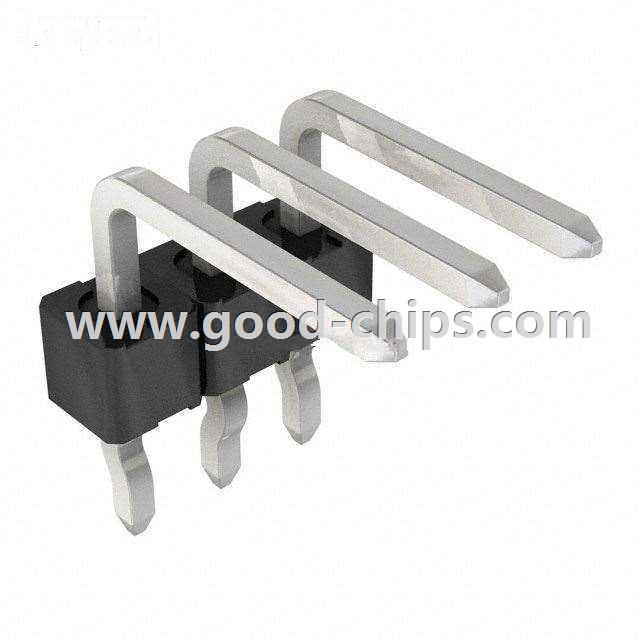

Description:3 Positions Header, Unshrouded, Breakaway Connector 0.100" (2.54mm) Through Hole, Right Angle Tin
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 0022287030 Datasheet
0022287030´s Parameters
Internal Part Number898-0022287030
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
RoHS Information22287030 Cert of Compliance
3D Model22-28-7030.stp
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
ManufacturerMolex, LLC
SeriesKK® 42376
PackagingBulk
Part StatusActive
Contact TypeMale Pin
Connector TypeHeader, Unshrouded, Breakaway
Number of Positions3
Number of Positions LoadedAll
Pitch0.100" (2.54mm)
Number of Rows1
Row Spacing-
Contact Mating Length0.361" (9.17mm)
Mounting TypeThrough Hole, Right Angle
TerminationKinked Pin, Solder
Fastening Type-
Features-
Contact FinishTin
Contact Finish Thickness100µin (2.54µm)
ColorBlack
Standard Package 3,750
Weight0.001 KG
ApplicationEmail for details
Replacement Part0022287030
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

0022287030 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0022287030 is new and unused, you can buy 0022287030 Molex, LLC with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 0022287030.
