Stocking distributor of Electronic Components

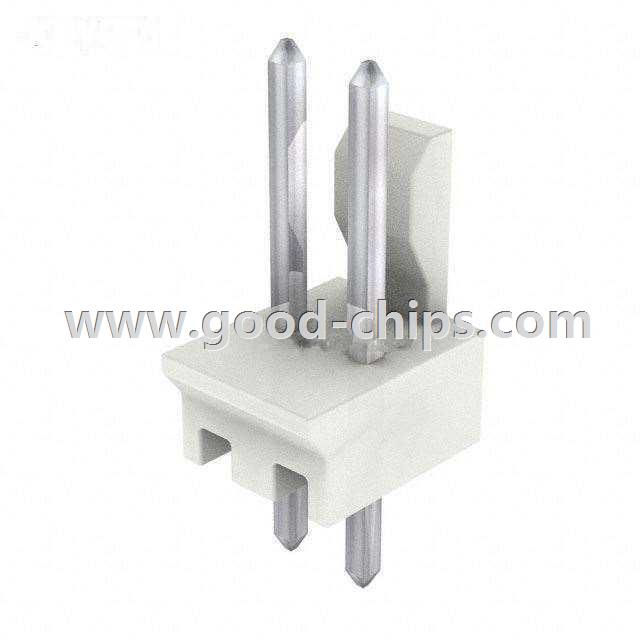

0022235024

0022235024
Manufacturer Part Number:0022235024
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:2 Positions Header, Unshrouded Connector 0.100" (2.54mm) Through Hole Tin
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 0022235024 Datasheet
0022235024´s Parameters
Internal Part Number898-0022235024
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesKK Low Power and Signal Interconnect Family
RoHS Information22235024 Cert of Compliance
3D Model22-23-5024.stp
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
ManufacturerMolex Connector Corporation
SeriesKK® 43009
PackagingBulk
Part StatusActive
Contact TypeMale Pin
Connector TypeHeader, Unshrouded
Number of Positions2
Number of Positions LoadedAll
Pitch0.100" (2.54mm)
Number of Rows1
Row Spacing-
Contact Mating Length0.295" (7.49mm)
Mounting TypeThrough Hole
TerminationSolder
Fastening TypeFriction Lock
Features-
Contact FinishTin
Contact Finish Thickness60µin (1.52µm)
ColorNatural
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement Part0022235024
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

0022235024 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0022235024 is new and unused, you can buy 0022235024 Molex, LLC with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 0022235024.
