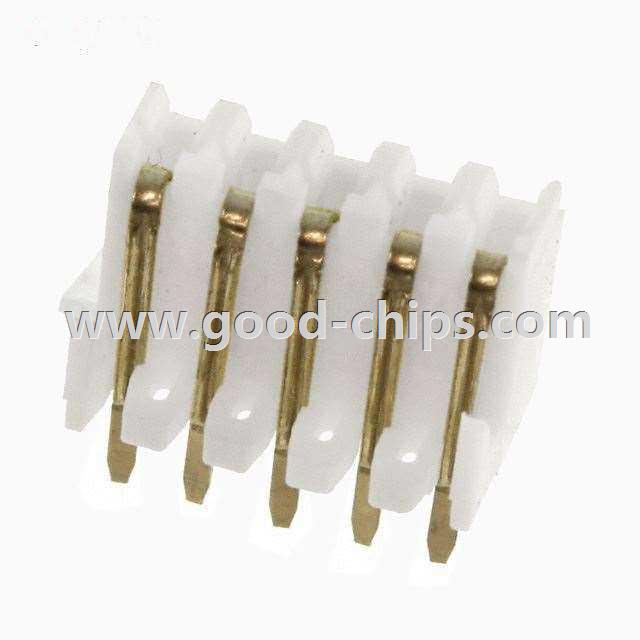

| Manufacturer Part Number: | 0022142054 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets |
| Available Quantity: | 10594 Pieces |
| Unit Price: | Quote by Email |
| Description: | 5 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Through Hole Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0022142054 Datasheet |
| Internal Part Number | 898-0022142054 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 22-14-2054 Cert of Compliance | |
| Featured Product | KK® Interconnect Solutions Power Connectors | |
| 3D Model | 22-14-2054.stp | |
| PCN Obsolescence/ EOL | Resin Color 01/Jan/2002 | |
| Online Catalog | KK® 4455 and 44812 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Receptacles, Female Sockets | |
| Manufacturer | Molex, LLC | |
| Series | KK® 4455 | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | Receptacle, Bottom Entry | |
| Contact Type | Female Socket | |
| Number of Positions | 5 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | - | |
| Contact Finish | Tin | |
| Contact Finish Thickness | 100µin (2.54µm) | |
| Color | White | |
| Standard Package | 1,575 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0022142054 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0022142054 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0022142054 is new and unused, you can buy 0022142054 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0022142054.
