0022122036

0022122036
Manufacturer Part Number:0022122036
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:9010 Pieces
Unit Price:Quote by Email

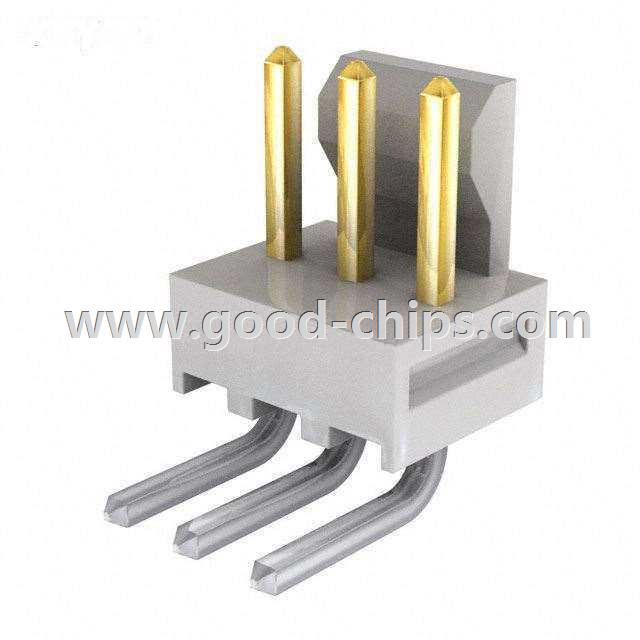

Description:3 Positions Header, Unshrouded Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 0022122036 Datasheet
0022122036´s Parameters
Internal Part Number898-0022122036
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
ManufacturerMolex, LLC
SeriesKK® 7478
PackagingBulk
Part StatusActive
Contact TypeMale Pin
Connector TypeHeader, Unshrouded
Number of Positions3
Number of Positions LoadedAll
Pitch0.100" (2.54mm)
Number of Rows1
Row Spacing-
Contact Mating Length0.264" (6.70mm)
Mounting TypeThrough Hole, Right Angle
TerminationSolder
Fastening TypeFriction Lock
Features-
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
ColorWhite
Standard Package 2,000
Weight0.001 KG
ApplicationEmail for details
Replacement Part0022122036
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

0022122036 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0022122036 is new and unused, you can buy 0022122036 Molex, LLC with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 0022122036.
