| Manufacturer Part Number: | 0015922250 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

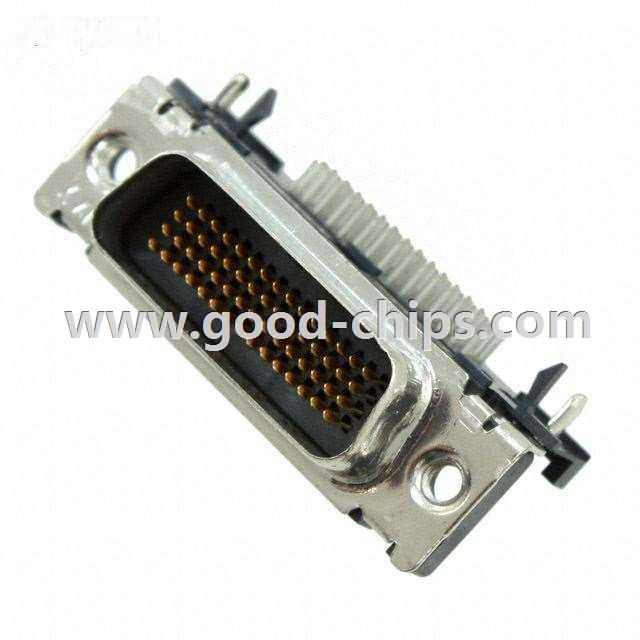

| Description: | 60 Position D-Type, Board to Board, Matrix Plug, Male Pins Connector, Panel Mount, Through Hole, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0015922250 Datasheet |
| Internal Part Number | 898-0015922250 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 15-92-2250 Cert of Compliance | |
| 3D Model | 15-92-2250.stp | |
| PCN Obsolescence/ EOL | 70991 Series 12/May/2014 | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Molex, LLC | |
| Series | Low Force Helix (LFH™) 70929 | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Connector Style | D-Type, Board to Board, Matrix | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 60 | |
| Number of Rows | 4 | |
| Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row | |
| Contact Type | Signal | |
| Mounting Type | Panel Mount, Through Hole, Right Angle | |
| Flange Feature | Housing/Shell (M3) | |
| Termination | Solder | |
| Features | Board Lock, Grounding Indents, Shielded | |
| Shell Material, Finish | Steel, Tin Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Ingress Protection | - | |
| Operating Temperature | -20°C ~ 80°C | |
| Voltage Rating | 40V | |
| Current Rating | 1A | |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | |
| Color | Black | |
| Standard Package | 14 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0015922250 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0015922250 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0015922250 is new and unused, you can buy 0015922250 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0015922250.
