| Manufacturer Part Number: | 0015913033 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 10340 Pieces |
| Unit Price: | Quote by Email |

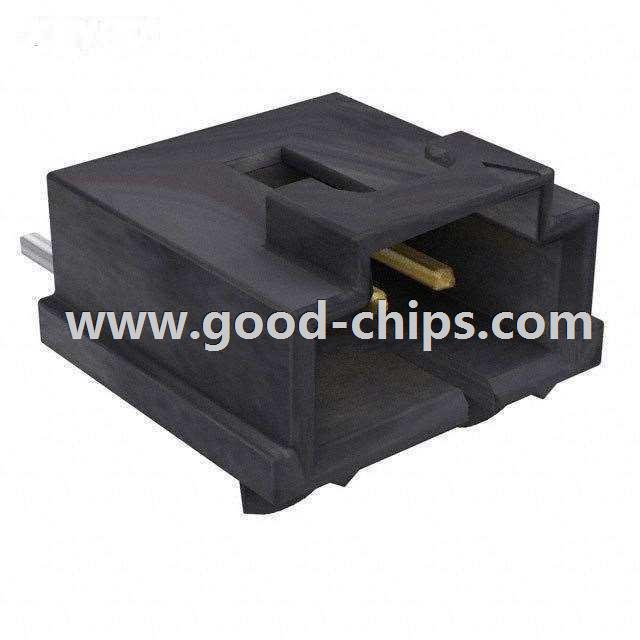

| Description: | 3 Positions Header, Shrouded Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0015913033 Datasheet |
| Internal Part Number | 898-0015913033 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | SL Family Roadmap | |
| Video File | Molex - Product Spotlight - SL™ Modular Connectors | |
| RoHS Information | 15913033 Cert of Compliance | |
| 3D Model | 15-91-3033.stp | |
| PCN Design/Specification | Multiple Devices Raw Material Manufacturing 11/Nov/2014 | |
| Online Catalog | SL™ Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Molex, LLC | |
| Series | SL™ 70634 | |
| Packaging | Tube | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 3 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Contact Mating Length | 0.240" (6.10mm) | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Fastening Type | Latch Holder | |
| Features | Board Guide | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 15µin (0.38µm) | |
| Color | Black | |
| Standard Package | 1,380 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0015913033 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0015913033 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0015913033 is new and unused, you can buy 0015913033 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0015913033.
