| Manufacturer Part Number: | 0015912200 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

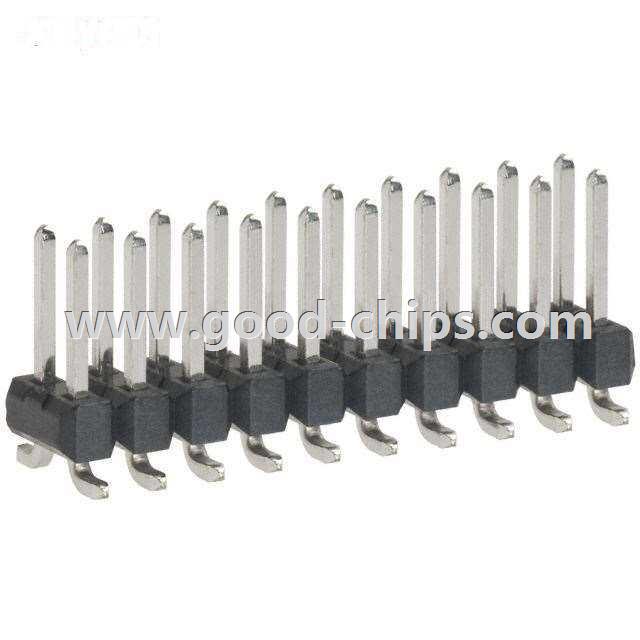

| Description: | 20 Positions Header, Unshrouded, Breakaway Connector 0.100" (2.54mm) Surface Mount Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0015912200 Datasheet |
| Internal Part Number | 898-0015912200 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 15-91-2200 Cert of Compliance | |
| 3D Model | 15-91-2200.stp | |
| Online Catalog | C-Grid® Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Molex, LLC | |
| Series | C-Grid® 71308 | |
| Packaging | Tube | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Unshrouded, Breakaway | |
| Number of Positions | 20 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.100" (2.54mm) | |
| Contact Mating Length | 0.240" (6.10mm) | |
| Mounting Type | Surface Mount | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | - | |
| Contact Finish | Tin | |
| Contact Finish Thickness | 150µin (3.81µm) | |
| Color | Black | |
| Standard Package | 1,134 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0015912200 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0015912200 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0015912200 is new and unused, you can buy 0015912200 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0015912200.
