0015910100

0015910100
Manufacturer Part Number:0015910100
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:14577 Pieces
Unit Price:Quote by Email

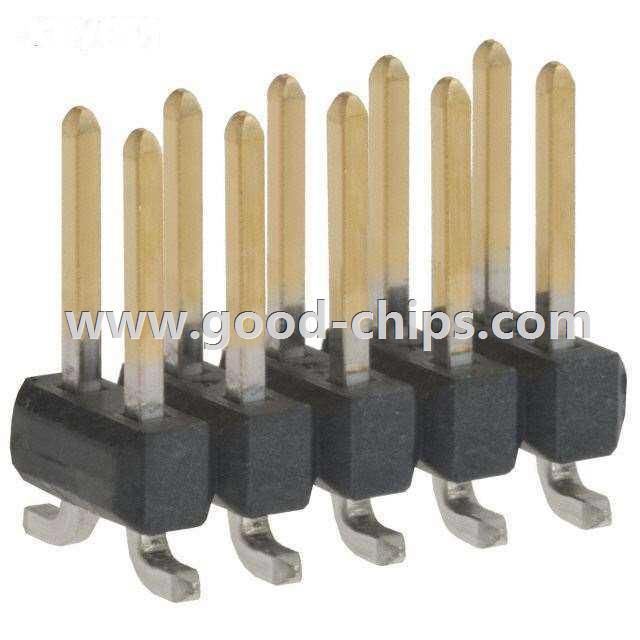

Description:10 Positions Header, Unshrouded, Breakaway Connector 0.100" (2.54mm) Surface Mount Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 0015910100 Datasheet
0015910100´s Parameters
Internal Part Number898-0015910100
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
RoHS Information15-91-0100 Cert of Compliance
3D Model15-91-0100.stp
Online Catalog C-Grid® Series
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
ManufacturerMolex, LLC
SeriesC-Grid® 71308
PackagingTube
Part StatusActive
Contact TypeMale Pin
Connector TypeHeader, Unshrouded, Breakaway
Number of Positions10
Number of Positions LoadedAll
Pitch0.100" (2.54mm)
Number of Rows2
Row Spacing0.100" (2.54mm)
Contact Mating Length0.240" (6.10mm)
Mounting TypeSurface Mount
TerminationSolder
Fastening Type-
Features-
Contact FinishGold
Contact Finish Thickness15µin (0.38µm)
ColorBlack
Standard Package 2,268
Weight0.001 KG
ApplicationEmail for details
Replacement Part0015910100
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

0015910100 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0015910100 is new and unused, you can buy 0015910100 Molex, LLC with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 0015910100.
