Manufacturer Part Number: | 0015291025 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Shunts, Jumpers |
Available Quantity: | 23533 Pieces |
Unit Price: | Quote by Email |

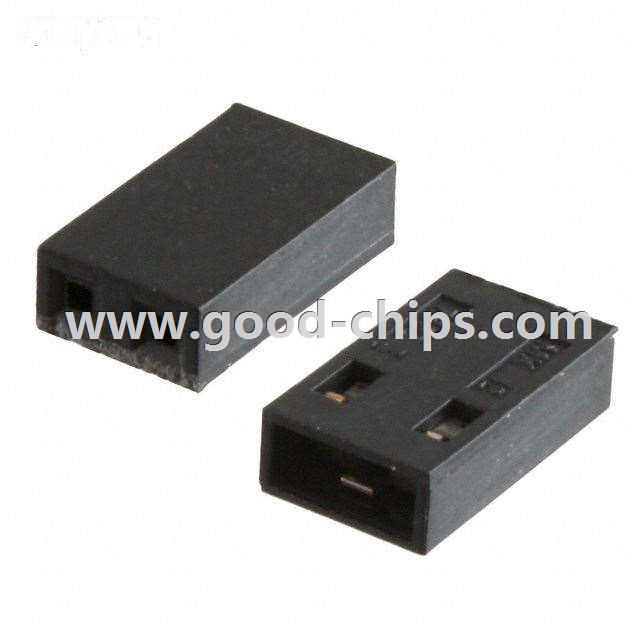

Description: | 2 (1 x 2) Position Shunt Connector Black Closed Top 0.100" (2.54mm) Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 0015291025 Datasheet |
Internal Part Number | 898-0015291025 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | 0015291025 Cert of Compliance | |
3D Model | 15-29-1025.stp | |
PCN Other | Various Series Supplier Change 23/Jul/2014 | |
Online Catalog | Shunts and Jumpers - Molex | |
Category | Connectors, Interconnects | |
Family | Shunts, Jumpers | |
Manufacturer | Molex, LLC | |
Series | C-Grid® 7859 | |
Packaging | Bulk | |
Part Status | Active | |
Type | Closed Top | |
Gender | Female Sockets | |
Number of Positions or Pins (Grid) | 2 (1 x 2) | |
Pitch | 0.100" (2.54mm) | |
Height | 0.347" (8.81mm) | |
Contact Finish | Gold | |
Contact Finish Thickness | 15µin (0.38µm) | |
Color | Black | |
Standard Package | 10,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 0015291025 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
0015291025 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0015291025 is new and unused, you can buy 0015291025 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0015291025.
