| Manufacturer Part Number: | 001-0021 |
|---|---|
| Manufacturer: | LSR |
| Product Category: | RF Antennas |
| Available Quantity: | 9141 Pieces |
| Unit Price: | Quote by Email |

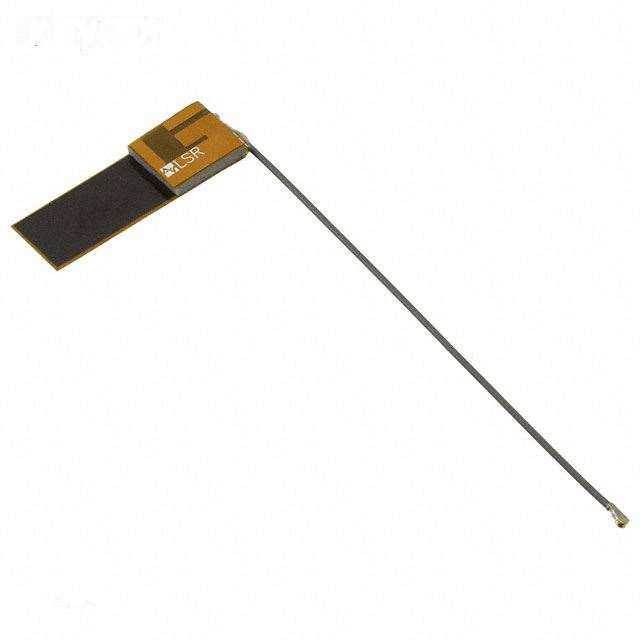

| Description: | 2.4GHz, 5.5GHz FlexPIFA RF Antenna 3dBi Connector, U.FL Adhesive |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 001-0021 Datasheet |
| Internal Part Number | 898-001-0021 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Featured Product | FlexPIFA 2.4/5.5 GHz Antennas | |
| PCN Design/Specification | Band Resonator Update 10/Aug/2016 | |
| Online Catalog | LS Research LLC - Embedded | |
| Category | RF/IF and RFID | |
| Family | RF Antennas | |
| Manufacturer | LSR | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) | |
| Frequency (Center/Band) | 2.4GHz, 5.5GHz | |
| Frequency Range | - | |
| Antenna Type | FlexPIFA | |
| Number of Bands | 2 | |
| VSWR | 3 | |
| Return Loss | - | |
| Gain | 3dBi | |
| Power - Max | - | |
| Features | - | |
| Termination | Connector, U.FL | |
| Ingress Protection | - | |
| Mounting Type | Adhesive | |
| Height (Max) | 0.098" (2.50mm) | |
| Applications | - | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 001-0021 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
001-0021 is in stock for immediate shipping now. We are the distributor of LSR all series components. The condition of 001-0021 is new and unused, you can buy 001-0021 LSR with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 001-0021.
