0009781081

0009781081
Manufacturer Part Number:0009781081
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:9010 Pieces
Unit Price:Quote by Email

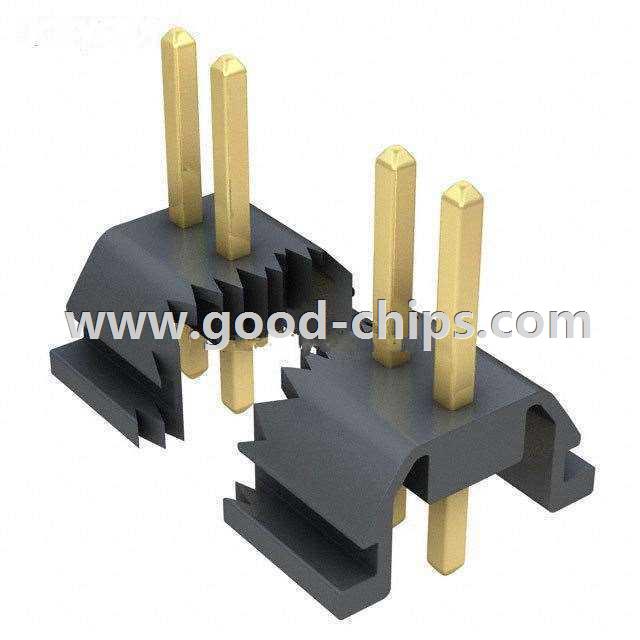

Description:8 Positions Header, Unshrouded Connector 0.156" (3.96mm) Through Hole Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 0009781081 Datasheet
0009781081´s Parameters
Internal Part Number898-0009781081
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
RoHS Information0009781081 Cert of Compliance
PCN Obsolescence/ EOL2220 Series 05/Oct/2012
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
ManufacturerMolex, LLC
SeriesKK® 2220
PackagingBulk
Part StatusObsolete
Contact TypeMale Pin
Connector TypeHeader, Unshrouded
Number of Positions8
Number of Positions LoadedAll
Pitch0.156" (3.96mm)
Number of Rows1
Row Spacing-
Contact Mating Length0.630" (16.00mm)
Mounting TypeThrough Hole
TerminationSolder
Fastening Type-
Features-
Contact FinishGold
Contact Finish Thickness20µin (0.51µm)
ColorNatural
Standard Package 800
Weight0.001 KG
ApplicationEmail for details
Replacement Part0009781081
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

0009781081 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0009781081 is new and unused, you can buy 0009781081 Molex, LLC with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 0009781081.
